FR207 2A 1000V (10PCS)
SKU: DIO-0092-B02
Sold by Select Automation
Final price R 7.59
R 6.60 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

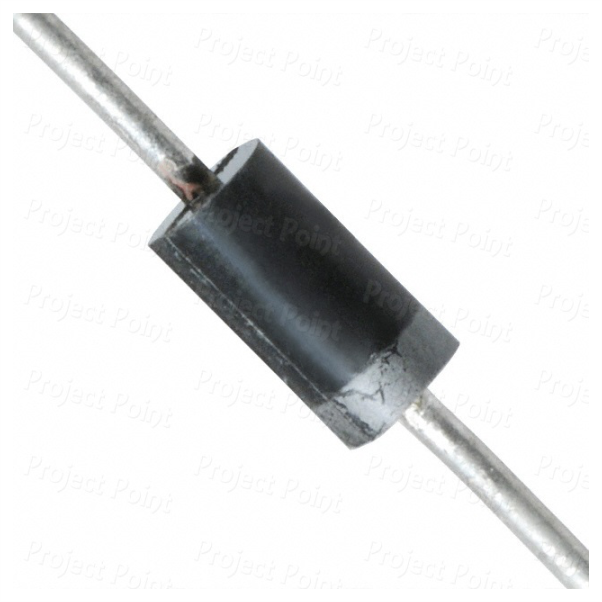

FR207 2A 1000V:
The FR207 is a fast-recovery rectifier diode designed for applications requiring high voltage and current handling, along with quick recovery times. It is widely used in power rectification, freewheeling diodes, and snubber circuits in various power supplies and inverters.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Reverse Voltage (VR): 1000V
Forward Current (IF): 2A
Forward Voltage Drop (VF): 1.3V at 2A
Reverse Recovery Time (trr): 500ns
Peak Surge Current (IFSM): 50A
Reverse Leakage Current (IR): 5µA at 1000V
Package Type: DO-15 (Axial, Through-hole)
Operating Temperature Range: -65°C to +150°C
Polarity: Cathode marked with a band
