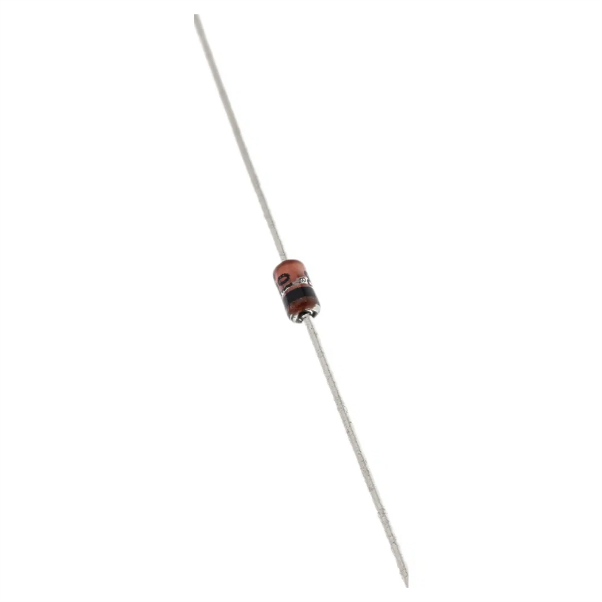

1N916 100V 200Ma (10Pcs)
SKU: DIO-0094-B02
Sold by Select Automation
Final price R 2.99
R 2.60 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
1N916 100V 200Ma:
The 1N916 is a high-speed, small-signal switching diode designed for use in high-frequency applications. It is ideal for signal processing, switching, and general-purpose rectification in low-power electronic circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Reverse Voltage (VR): 100V
Forward Current (IF): 200mA
Forward Voltage Drop (VF): 1.0V at 20mA
Reverse Recovery Time (trr): 4ns
Peak Surge Current (IFSM): 500mA
Reverse Leakage Current (IR): 25nA at 20V
Package Type: DO-35 (Axial, Through-hole)
Operating Temperature Range: -65°C to +200°C
Polarity: Cathode marked with a band
