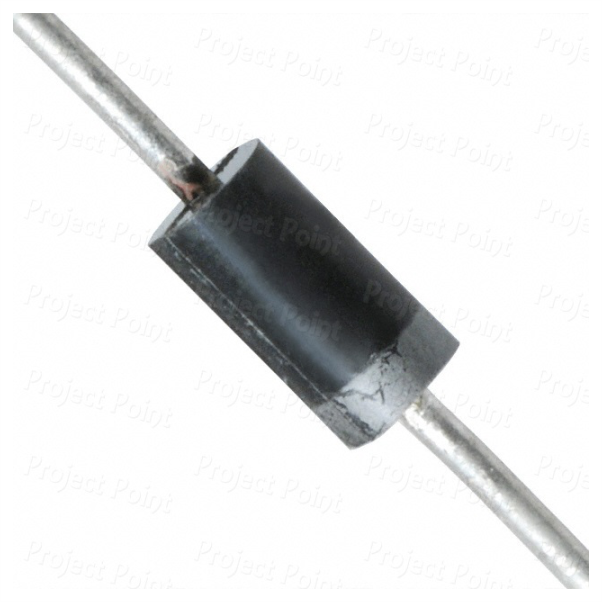

400V High Conductance 1A Diode
SKU: DIO-0095-B02
Sold by Select Automation
Final price R 0.47
R 0.41 excl. VAT
Availability: In Stock (17 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
400V High Conductance 1A Diode:
A 400V high-conductance 1A diode is designed for general-purpose rectification in power circuits. It can handle up to 1A of forward current and is suitable for AC-to-DC conversion, freewheeling diodes, and polarity protection in medium-power applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Reverse Voltage (VR): 400V
Forward Current (IF): 1A
Forward Voltage Drop (VF): 1.1V at 1A
Peak Surge Current (IFSM): 30A
Reverse Leakage Current (IR): 5µA at 400V
Reverse Recovery Time (trr): 2µs
Package Type: DO-41 (Axial, Through-hole)
Operating Temperature Range: -55°C to +150°C
Polarity: Cathode marked with a band
