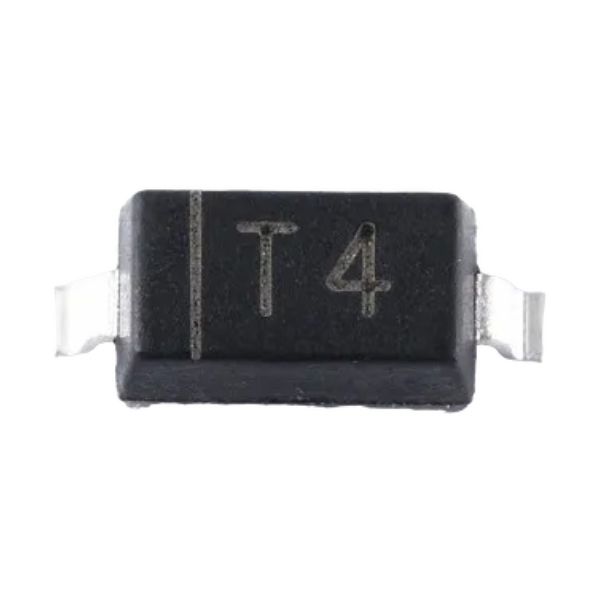

1N4148 SMD Diode (10pcs)
SKU: DIO-0096-B02
Sold by Select Automation
Final price R 0.54
R 0.47 excl. VAT
Availability: In Stock (41 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1N4148 SMD Diode is a high-speed switching diode widely used in digital and analog circuits. Known for its reliability and low cost, it’s ideal for signal processing, protection circuits, and high-frequency switching.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Silicon epitaxial fast switching diode
Maximum Reverse Voltage (V_RRM): 100V
Average Forward Current (I_F): 150mA
Peak Forward Surge Current (I_FSM): 500mA (10µs pulse)
Forward Voltage Drop (V_F): ~1V at 10mA
Reverse Recovery Time (t_rr): 4–8ns
Junction Capacitance (C_j): ~4pF
Power Dissipation (P_D): Up to 500mW
Operating Temperature Range: –65°C to +175°C
