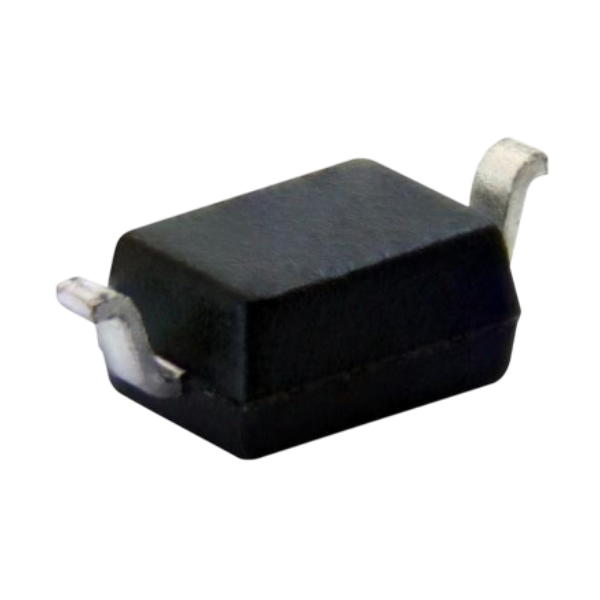

1N5918 SMD Diode
SKU: DIO-0097-B02
Sold by Select Automation
Final price R 0.54
R 0.47 excl. VAT
Availability: In Stock (19 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1N5918 SMD Diode is a 1.5-watt silicon Zener diode designed for voltage regulation across a wide range of operating currents and temperatures. It’s part of the JEDEC-registered 1N5913–1N5956B series and is commonly used in power management, protection circuits, and precision voltage reference applications. The SMD version offers compact packaging for surface-mount designs, with high reliability and low leakage current.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: SMD
Zener Voltage (Vz): 5.1V
Power Dissipation (Ptot): 1.5W
Maximum Zener Impedance (Zz): 4Ω
Maximum Reverse Leakage Current (Ir): 5µA at Vr = 2V
Package Type: DO-41 (Axial) or SMBJ/SMBG for SMD equivalents
Tolerance Options: ±5% (B suffix), ±10% (A suffix), tighter tolerances available
Moisture Sensitivity Level: Level 1 (no dry pack required)
Operating Temperature Range: –65°C to +150°C
