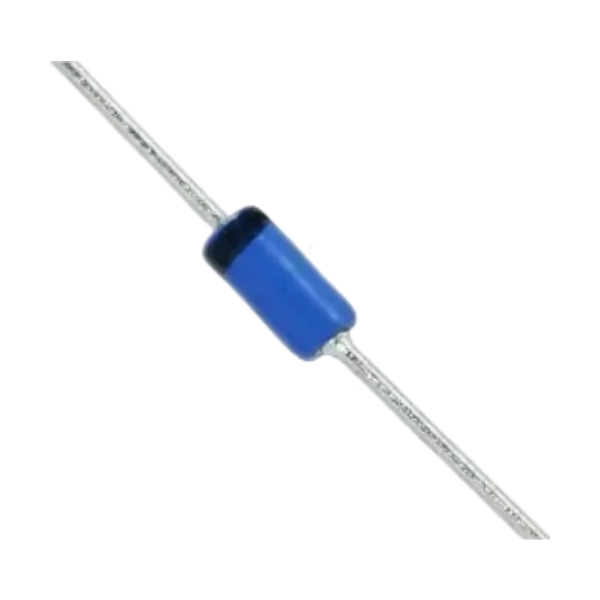

BZX85C33 Zenner 33v Diode
SKU: DIO-0098-B02
Sold by Select Automation
Final price R 2.30
R 2.00 excl. VAT
Availability: In Stock (74 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The BZX85C33 Zener Diode is a 33V, 1W through-hole voltage regulator diode designed for precision clamping and voltage stabilization in electronic circuits. It features a silicon-oxide passivated junction for enhanced reliability and is housed in a hermetically sealed DO-41 glass package. Ideal for general-purpose regulation tasks, it offers stable performance across a wide temperature range and is commonly used in power supplies, protection circuits, and signal conditioning.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Zener Voltage (Vz): 33V
Power Dissipation (Ptot): 1W
Zener Impedance (Zz): 35Ω at 8mA
Maximum Reverse Leakage Current (Ir): 500nA at Vr = 25V
Forward Voltage (Vf): 1.2V at 200mA
Voltage Tolerance: ±5%
Package Type: DO-41 axial lead
Mounting Style: Through-hole
Operating Temperature Range: –65°C to +200°C
Weight: ~0.31g
