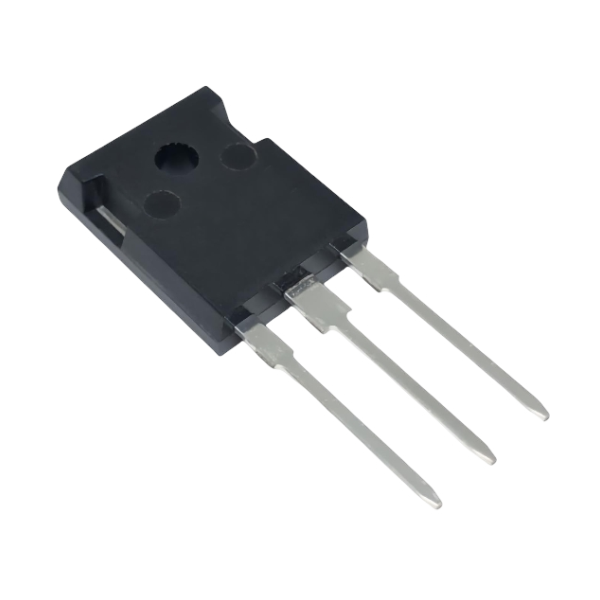

RURG3040C Diode
SKU: DIO-0099-B02
Sold by Select Automation
Final price R 10.22
R 8.89 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RURG3040C is a high-performance ultrafast recovery diode designed for use in power switching applications such as freewheeling, clamping, and rectification in SMPS and motor control systems. With a soft recovery characteristic and low stored charge, it minimizes electrical noise and switching losses, making it ideal for high-frequency environments. Its robust TO-247 package and avalanche-rated construction ensure durability under demanding conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Ultrafast Soft Recovery Diode
Package: TO-247
Maximum Reverse Voltage (VRRM): 400V
Average Forward Current (IF(AV)): 30A (per leg at TC = 130°C)
Peak Surge Current (IFSM): 325A (non-repetitive, half-wave 60Hz)
Reverse Recovery Time (trr): <55ns
Forward Voltage Drop (VF):
~1.3V at 30A, TC = 25°C
~1.5V at 30A, TC = 150°C
Power Dissipation (PD): 125W
Avalanche Energy (EAVL): 20mJ
Operating Temperature Range: –65°C to +175°C
Construction: Silicon nitride passivated, ion-implanted epitaxial planar
Applications: Switching power supplies, motor drives, general-purpose power switching
