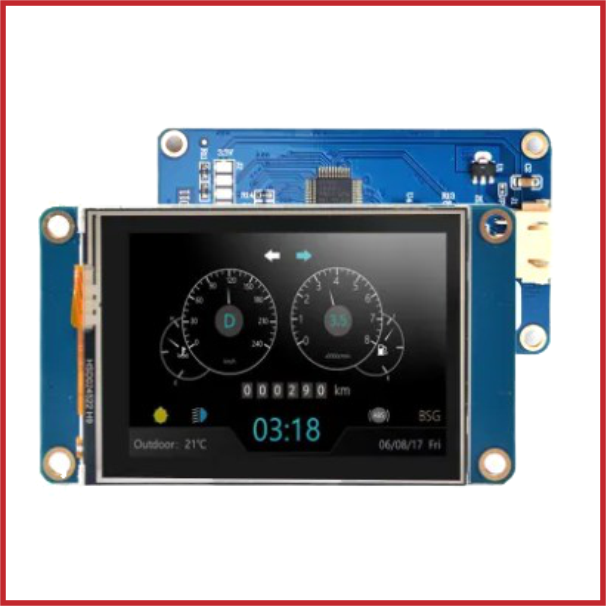

Nextion NX3224T024 2.4" LCD Touch Display
SKU: DIS-0001-O01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Nextion NX3224T024 is a compact 2.4-inch Human Machine Interface (HMI) touchscreen display designed to simplify graphical user interface development for embedded systems and microcontroller-based applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display size: 2.4-inch TFT LCD.
Resolution: 320 × 240 pixels (QVGA).
Colour depth: 65K colours (16-bit RGB 5-6-5).
Touch type: Resistive touch panel (4-wire RTP).
Backlight: LED, adjustable brightness (software controlled).
Brightness: up to ~180 nits (adjustable range 0–100%).
MCU: 48 MHz embedded ARM Cortex-M0+.
Flash memory: 4 MB.
SRAM: 3584 bytes.
Instruction buffer: 1024 bytes.
Onboard graphics engine: Yes (Nextion HMI processor).
Interface: UART serial (TTL level).
Connector: 4-pin (VCC, GND, TX, RX).
Default baud rate: 9600 bps (configurable 2400–115200 bps).
Operating voltage: 5V DC (±10%).
Typical current consumption: 65–90 mA.
Module size: 74.4 mm × 42.9 mm × 5.8 mm.
Active display area: 48.96 mm × 36.72 mm.
Viewing area: 60.26 mm × 42.72 mm.
Operating temperature: -20°C to +70°C.
Storage temperature: -30°C to +85°C.
Humidity: 10% – 90% RH (non-condensing).
