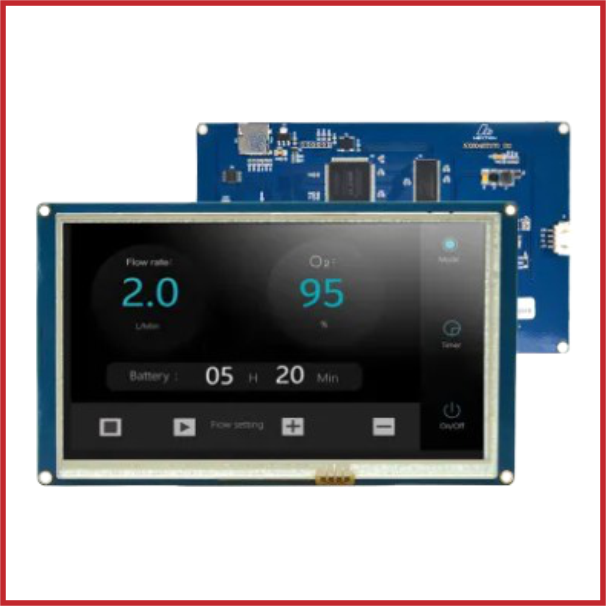

Nextion Enhanced NX8048T070 7.0" LCD Touch Display

The Nextion Enhanced NX8048T070 is a 7.0-inch intelligent Human Machine Interface (HMI) touchscreen display designed for embedded systems, industrial control, and IoT applications. It integrates a TFT LCD display, touch input, and an onboard processor into a single self-contained module, enabling efficient graphical interface development without requiring complex graphics processing from an external microcontroller. This module features a 800 × 480-pixel resolution resistive touchscreen, delivering clear and responsive visual interaction for control panels, monitoring systems, and user interfaces. Communication with external devices such as Arduino, ESP32, Raspberry Pi, or PLC systems is achieved through a simple UART serial interface, significantly reducing wiring complexity and development time. The Enhanced series design includes an integrated processor, 16MB flash memory, and additional system resources to support more complex interface designs and data handling. It allows developers to create interactive graphical interfaces using the Nextion Editor software, where UI elements such as buttons, sliders, gauges, and text fields can be designed using a drag-and-drop environment. Once programmed, the display operates independently, rendering graphics internally while receiving simple serial commands from the host system. This architecture reduces the processing load on the main controller and simplifies system integration. The NX8048T070 is widely used in applications such as industrial automation, smart home control systems, medical equipment interfaces, and IoT dashboards where a large, intuitive touchscreen interface is required.
