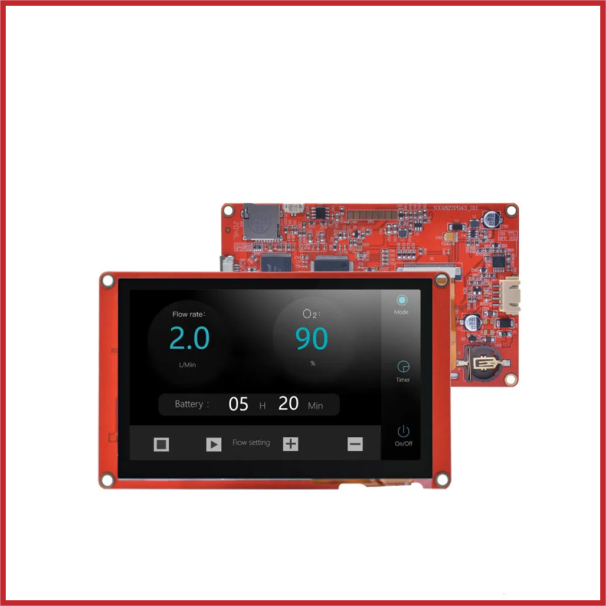

NX4827P043-011C 4.3” Nextion Intelligent Series

Specifications: Display size: 4.3-inch TFT LCD. Resolution: 480 × 272 pixels. Colour depth: 65K colours (16-bit RGB 5-6-5). Touch type: Capacitive touch panel (multi-touch capable). Backlight: LED with adjustable brightness. Backlight lifespan: >30,000 hours. Interface: UART (TTL serial communication). Connector: 4-pin (VCC, GND, TX, RX). Default baud rate: 9600 bps (configurable up to high-speed modes). Operating voltage: 4.75V – 5.5V DC. Recommended supply: 5V, ~1A. Typical current consumption: ~80 mA to 200 mA. Operating temperature: -20°C to +70°C. Storage temperature: -30°C to +85°C. Humidity: 10% – 90% RH (non-condensing). Module size: 120 mm × 74 mm × 6.6 mm. Active area: 105.5 mm × 67.2 mm. Visual area: 95 mm × 53.9 mm. Mounting: Embedded panel mounting.   It integrates a high-performance TFT LCD display, capacitive touch panel, onboard processor, and memory into a single intelligent module, enabling fully standalone graphical user interface operation.   This model belongs to the Nextion Intelligent series, the most advanced tier in the Nextion product range, offering significantly enhanced processing power, expanded memory capacity, and support for rich multimedia functions such as animations, audio playback, and advanced UI effects.   It communicates with external microcontrollers via a simple UART serial interface, allowing seamless integration with platforms such as Arduino, ESP32, Raspberry Pi, and PLC systems.   The display features a 4.3-inch capacitive touchscreen with a resolution of 480 × 272 pixels, providing responsive multi-touch interaction and clear visual output.   Its onboard 200 MHz processor handles all graphical rendering internally, reducing the computational load on the host controller and simplifying system design.   Using the Nextion Editor software, developers can design interfaces through a drag-and-drop environment, incorporating elements such as buttons, sliders, gauges, text fields, animations, and event-driven logic without complex graphical programming.   With its combination of processing capability, memory resources, and multimedia support, the NX4827P043-011C is ideal for applications requiring modern, interactive user interfaces, including smart home systems, industrial control panels, vehicle dashboards, and IoT monitoring solutions.   Overall, this module provides a powerful, all-in-one HMI solution that significantly accelerates interface development while delivering professional-grade user experience and performance.
