DPM/HKD digital dual 100v 50A RB
SKU: DIS-0025-001
Sold by Select Automation
Final price R 210.59
R 183.12 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

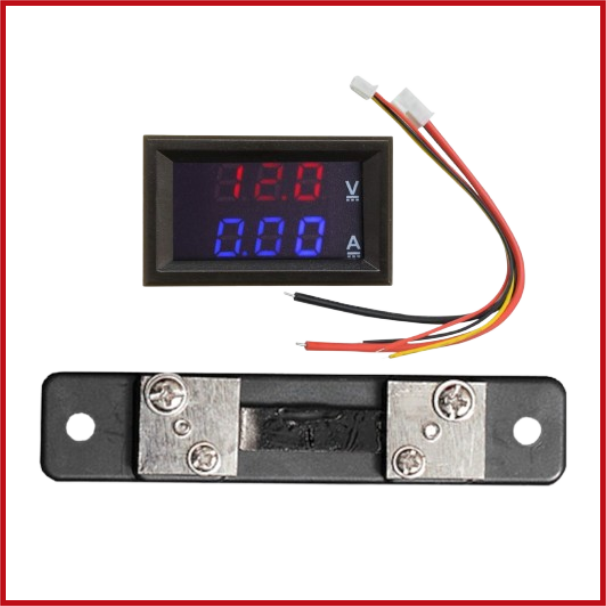

The DPM/HKD Digital Dual 100V 50A RB is a compact and reliable DC digital voltmeter and ammeter panel meter, engineered for accurate real-time monitoring of both voltage and current in DC electrical systems.
Featuring a dual LED display, the module simultaneously presents voltage and current readings using high-visibility red and blue numeric displays, ensuring fast and clear measurement interpretation.
Designed for panel mounting applications, this meter supports a measurement range of 0–100V DC and 0–50A DC, making it ideal for use in power supplies, battery monitoring systems, solar installations, automo
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: DPM/HKD Digital Dual 100V 50A RB.
Display Type: Dual LED Digital Panel Meter.
Measurement Type: DC Voltage and Current Meter.
Voltage Measurement Range: 0 – 100V DC.
Current Measurement Range: 0 – 50A DC.
Display colours:
Red LED: Voltage display.
Blue LED: Current display.
Display Size: 0.28-inch dual digital LED display.
Power Supply Voltage: 4.5V – 30V DC.
Operating Current: ≤20mA.
Voltage Resolution: 0.1V.
Current Resolution: 0.01A.
Measurement Accuracy: ±1% (±1 digit).
Refresh Rate: 100–300ms.
Current Measurement Method: External 50A shunt resistor included.
Operating Temperature: -10°C to +65°C.
Dimensions: 48 × 29 × 22 mm.
Mounting Type: Panel mount.
Applications: Battery systems, DC power supplies, solar power systems, automotive electronics, chargers, and industrial monitoring systems.
