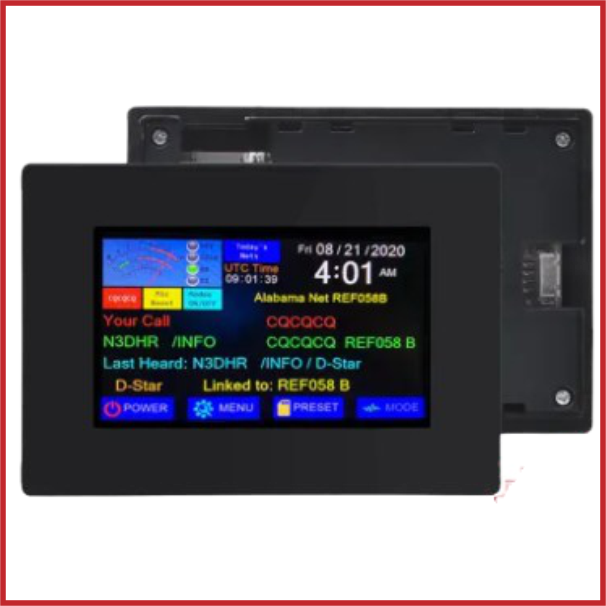

NX4827P043-011C-Y 4.3” Nextion Intelligent Series with enclosure

The Nextion NX4827P043-011C-Y is a 4.3-inch Intelligent Series Human Machine Interface (HMI) touchscreen display supplied with a protective enclosure, designed for industrial, IoT, and embedded control applications. It integrates a high-resolution capacitive touchscreen, onboard processing unit, and memory into a fully self-contained graphical interface system. This module features a 480 × 272-pixel capacitive touch display, offering smooth and responsive multi-touch interaction with improved clarity and durability compared to resistive variants. The integrated enclosure provides mechanical protection and allows for easy desktop or panel-mounted installation, making it suitable for both development and finished product deployment. Built on the Nextion Intelligent Series architecture, the display includes a powerful 200 MHz ARM-based processor, enabling it to independently render graphical interfaces without burdening the host microcontroller. It communicates with external systems such as Arduino, ESP32, Raspberry Pi, and PLCs via a simple UART serial interface, significantly reducing wiring complexity and development effort. The device offers 128 MB flash memory, 512 KB RAM, and built-in support for advanced features such as animations, audio playback, RTC functionality, and GPIO control. Interfaces are created using the Nextion Editor software, which allows developers to design interactive GUIs using drag-and-drop components including buttons, sliders, gauges, text fields, and multimedia elements. Once programmed, the display operates autonomously, receiving simple serial commands from the host system to update values, trigger events, or change screens. This architecture makes it ideal for applications requiring a professional, responsive user interface with minimal microcontroller overhead. The enclosure version (Y-series) enhances usability by providing a ready-to-use housing solution, reducing installation time and improving durability in real-world environments.
