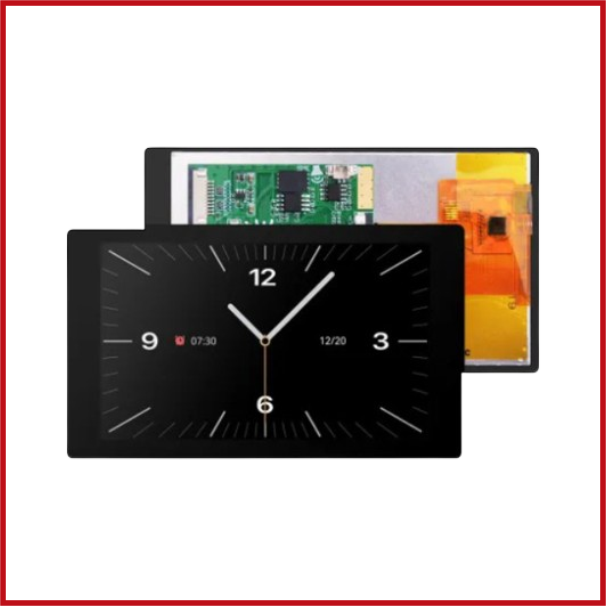

      NX4880E043-011C – Nextion 4.3″ Edge Series HMI Touch Display

      SKU: DIS-0032-001

      Out of stock

      Availability: Out of Stock

      Short Description
      The NX4880E043-011C Nextion 4.3″ Edge Series HMI Touch Display is a premium high-resolution capacitive touchscreen designed for advanced embedded interface applications. Featuring a crisp 480 × 480 IPS display, vibrant colour reproduction, and responsive touch control, this display is ideal for smart home systems, industrial automation, IoT dashboards, instrumentation, and custom control interfaces. Its larger 4.3-inch round display provides enhanced visibility and a modern, professional appearance for sophisticated HMI projects. As part of the advanced Nextion Edge Series, the NX4880E043-011C delivers enhanced graphics performance, smoother animations, transparent component support, and expanded memory for more dynamic user interfaces. With simple TTL UART serial communication, it integrates easily with popular development platforms such as Arduino, ESP32, STM32, Raspberry Pi, and PLC systems, reducing programming complexity while delivering a powerful and responsive user experience.
      DIS-0032-001
      Alternative image 1 Alternative image 2 Alternative image 3 Alternative image 4
      Specifications: Model: NX4880E043-011C. Series: Nextion Edge Series. Display Size: 4.3-inch Round IPS Display. Resolution: 480 × 480 pixels. Touch Type: Capacitive Touch Panel (CTP). Display Technology: IPS (Wide Viewing Angle). Display Colours: 65K (16-bit colour). Communication Interface: TTL UART Serial (3.3V). Operating Voltage: 4.65V – 6.5V DC. Flash Memory: 128MB. RAM: 512KB. EEPROM: 1024 Bytes. RTC: Built-in Real-Time Clock (RTC). GPIO: 8 Extended GPIO Pins (PWM supported on selected pins). Storage: MicroSD Card Support (up to 32GB). Brightness: Adjustable LED Backlight (up to 300 nits). Operating Temperature: -20°C to +70°C. Storage Temperature: -30°C to +80°C. Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers. Applications: Industrial HMI, smart home interfaces, IoT systems, instrumentation, automation control panels, and embedded GUI projects. Included Accessories: 4-pin connection cable and power supply test board.
