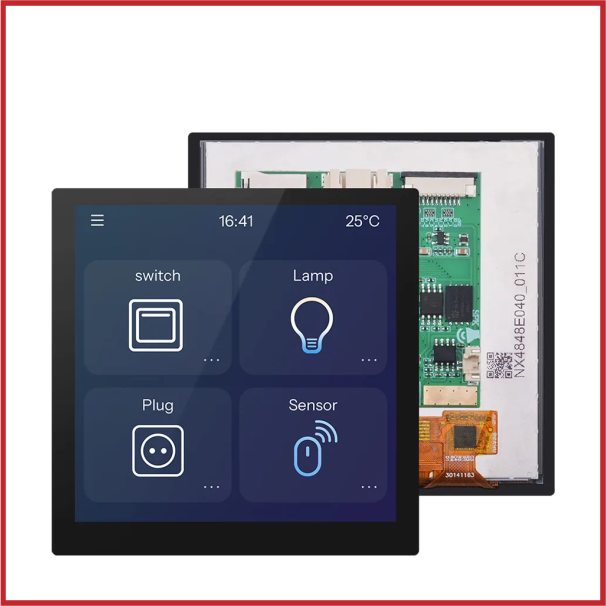

NX4848E040-011C – Nextion 4.0″ Edge Series HMI Touch Display
SKU: DIS-0033-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Nextion NX4848E040-011C is a 4.0-inch Edge Series HMI touch display used to create graphical user interfaces for embedded and industrial applications.
The device has a 480 × 480 IPS capacitive touchscreen, a 200 MHz MCU, built-in RAM, GPIOs, RTC, and supports Nextion Editor components.
The Edge Series also enables video, music, and animation playback.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: HMI Touch Display.
Display Size: 4.0″.
Display Type: IPS.
Resolution: 480 × 480 pixels.
Touch Panel: Capacitive Touch Panel (CTP).
MCU Frequency: 200 MHz
Flash Memory: 128 MB.
SRAM: 512 KB.
EEPROM: 1024 Byte.
GPIOs: 8.
GPIO Functions: Input / Output / Component Binding Event.
PWM: IO4–IO7.
RTC: Yes, CR1220.
Input Power: DC 5 V, 1 A.
Serial Interface: USART.
USART Connector: XH2.54 4P.
Display Colour: 65,536 colours.
Audio: Supported.
Video: Supported.
Animation: Supported.
Component Opaqueness: Supported.
Font Anti-Aliasing: Supported.
Enclosure: No.
Working Temperature: -20 to 70 °C.
Storage Temperature: -30 to 80 °C.
