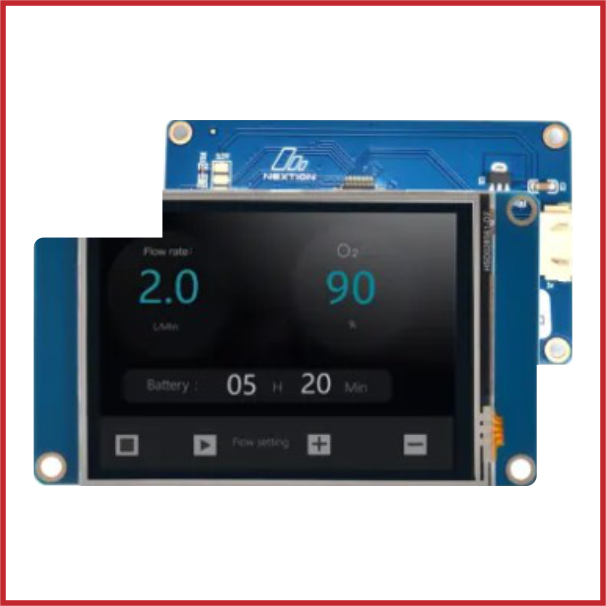

NX3224T028 – Nextion 2.8” Basic Series HMI Touch Display
SKU: DIS-0034-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX3224T028 Nextion 2.8″ Basic Series HMI Touch Display is a compact and user-friendly touchscreen solution designed to simplify graphical user interface development for embedded systems.
Featuring a 2.8-inch TFT resistive touchscreen with a 320 × 240 resolution, this display is ideal for smart home projects, automation systems, IoT devices, industrial controls, and DIY electronics applications.
As part of the Nextion Basic Series, the NX3224T028 offers an easy-to-use interface with UART serial communication, allowing seamless integration with popular development platforms such as Arduino, ESP32, STM32, Raspberry Pi, and PLC systems.
The built-in Nextion Editor software enables intuitive drag-and-drop GUI design, reducing programming complexity and speeding up project development.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX3224T028.
Series: Nextion Basic Series.
Display Size: 2.8-inch TFT Display.
Resolution: 320 × 240 pixels (QVGA).
Touch Type: Resistive Touch Panel (RTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial.
Operating Voltage: 4.75V – 7V DC.
Flash Memory: 16MB.
RAM: 3584 Bytes.
EEPROM: 1024 Bytes.
Brightness: Adjustable LED Backlight.
Storage: MicroSD Card Slot.
Operating Temperature: -20°C to +70°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Smart home systems, industrial HMI, IoT dashboards, automation controls, instrumentation, and DIY electronics projects.
Included Accessories: 4-pin connection cable and mounting accessories.
