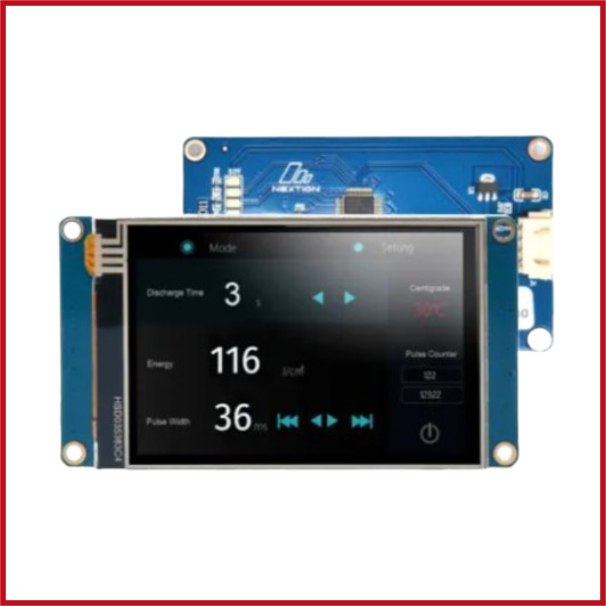

NX4832T035 – Nextion 3.5” Basic Series HMI Touch Display
SKU: DIS-0035-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX4832T035 Nextion 3.5″ Basic Series HMI Touch Display is a compact and easy-to-use touchscreen interface designed for embedded systems and automation projects.
Featuring a 3.5-inch TFT resistive touchscreen with a crisp 480 × 320 resolution, it provides a reliable and user-friendly interface for smart home systems, industrial controls, IoT devices, and DIY electronics.
The intuitive Nextion Editor software allows users to create custom graphical interfaces quickly, reducing development complexity.
Using simple TTL UART serial communication, the display integrates seamlessly with popular development platforms such as Arduino, ESP32, STM32, Raspberry Pi, and PLC systems.
As part of the Nextion Basic Series, it offers a cost-effective HMI solution with responsive touch functionality and dependable performance for a wide range of applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX4832T035.
Series: Nextion Basic Series.
Display Size: 3.5-inch TFT Display.
Resolution: 480 × 320 pixels.
Touch Type: Resistive Touch Panel (RTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial.
Operating Voltage: 4.75V – 7V DC.
Flash Memory: 16MB.
RAM: 3584 Bytes.
EEPROM: 1024 Bytes.
Backlight: Adjustable LED Backlight.
Storage: MicroSD Card Slot.
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Smart home systems, industrial HMI, IoT dashboards, automation controls, instrumentation, and DIY electronics projects.
Included Accessories: 4-pin connection cable and power supply test board.
