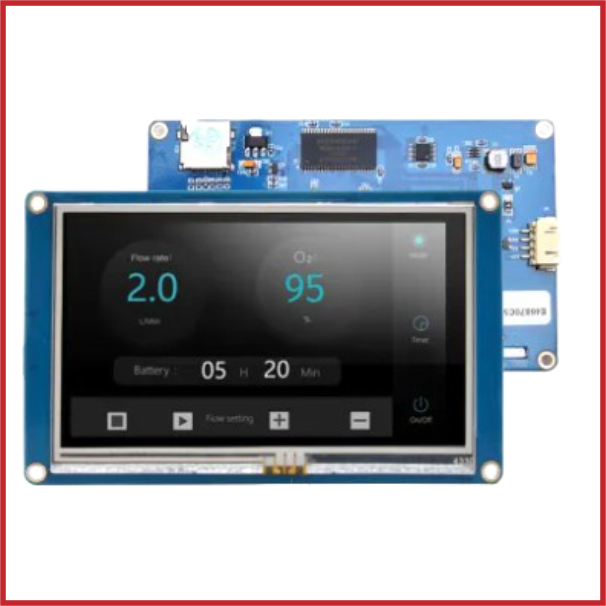

NX4827T043 – Nextion 4.3” Basic Series HMI Touch Display
SKU: DIS-0036-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX4827T043 Nextion 4.3″ Basic Series HMI Touch Display is a user-friendly touchscreen interface designed to simplify embedded GUI development for automation, IoT, and control applications.
Featuring a 4.3-inch TFT resistive touchscreen with a 480 × 272 resolution, this display provides a clear and responsive interface for smart home systems, industrial controls, instrumentation, and DIY electronics projects.
As part of the Nextion Basic Series, the NX4827T043 communicates via simple TTL UART serial, making integration quick and easy with popular platforms such as Arduino, ESP32, STM32, Raspberry Pi, and PLC systems.
Using the intuitive Nextion Editor software, users can create custom graphical interfaces with drag-and-drop components, reducing programming complexity and speeding up development time.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX4827T043.
Series: Nextion Basic Series.
Display Size: 4.3-inch TFT Display.
Resolution: 480 × 272 pixels.
Touch Type: Resistive Touch Panel (RTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial.
Operating Voltage: 4.75V – 7V DC.
Flash Memory: 16MB.
RAM: 3584 Bytes.
EEPROM: 1024 Bytes.
Backlight: Adjustable LED Backlight.
Storage: MicroSD Card Slot.
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Smart home systems, industrial HMI, IoT dashboards, automation controls, instrumentation, and DIY electronics projects.
Included Accessories: 4-pin connection cable and power supply test board.
