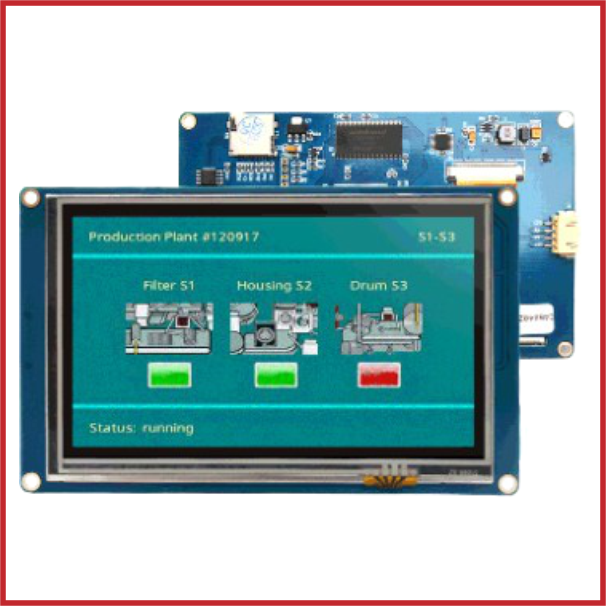

NX8048T050 – Nextion 5.0” Basic Series HMI Touch Display
SKU: DIS-0037-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX8048T050 Nextion 5.0″ Basic Series HMI Touch Display is a powerful and user-friendly touchscreen interface designed for embedded systems, industrial automation, smart home applications, and IoT projects.
Featuring a vibrant 5.0-inch TFT resistive touchscreen with a high-resolution 800 × 480 display, it provides a clear and responsive interface for monitoring, control, and custom GUI applications.
Its larger screen size makes it ideal for projects requiring improved visibility and more detailed user interfaces.
As part of the Nextion Basic Series, the NX8048T050 communicates via simple TTL UART serial, allowing easy integration with popular platforms such as Arduino, ESP32, STM32, Raspberry Pi, and PLC systems.
Using the intuitive Nextion Editor software, users can quickly create custom graphical interfaces with drag-and-drop components, significantly reducing development time and programming complexity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX8048T050.
Series: Nextion Basic Series.
Display Size: 5.0-inch TFT Display.
Resolution: 800 × 480 pixels.
Touch Type: Resistive Touch Panel (RTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial.
Operating Voltage: 4.75V – 7V DC.
Flash Memory: 16MB.
RAM: 3584 Bytes.
EEPROM: 1024 Bytes.
Backlight: Adjustable LED Backlight.
Storage: MicroSD Card Slot.
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Smart home systems, industrial HMI, IoT dashboards, automation controls, instrumentation, and DIY electronics projects.
Included Accessories: 4-pin connection cable and power supply test board.
