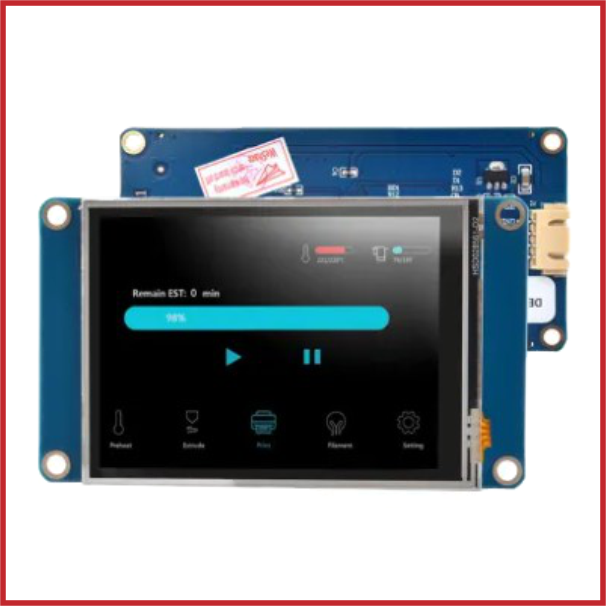

NX4024T032 – Nextion 3.2” Basic Series HMI Touch Display
SKU: DIS-0038-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX4024T032 Nextion 3.2″ Basic Series HMI Touch Display is a compact and user-friendly touchscreen solution designed to simplify graphical user interface development for embedded systems.
Featuring a 3.2-inch TFT resistive touchscreen with a 400 × 240 resolution, this display is ideal for smart home systems, industrial automation, IoT devices, instrumentation, and DIY electronics projects.
Its responsive touch interface and intuitive development environment make it an excellent choice for both beginners and advanced developers.
Using simple TTL UART serial communication, the NX4024T032 integrates seamlessly with platforms such as Arduino, ESP32, STM32, Raspberry Pi, and PLC systems.
The included Nextion Editor software allows easy drag-and-drop GUI creation, significantly reducing programming complexity and speeding up project development.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX4024T032.
Series: Nextion Basic Series.
Display Size: 3.2-inch TFT Display.
Resolution: 400 × 240 pixels.
Touch Type: Resistive Touch Panel (RTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial.
Operating Voltage: 5V DC (4.75V – 7V).
Flash Memory: 4MB.
RAM: 3584 Bytes SRAM.
MCU Speed: 48MHz ARM Processor.
Backlight: Adjustable LED Backlight.
Brightness: Up to 230 nits adjustable.
Storage: MicroSD Card Slot.
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Dimensions: 95 × 47.6 × 4.6mm.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Smart home systems, industrial HMI, IoT dashboards, automation controls, instrumentation, and DIY electronics projects.
Included Accessories: 4-pin connection cable and power supply test board.
