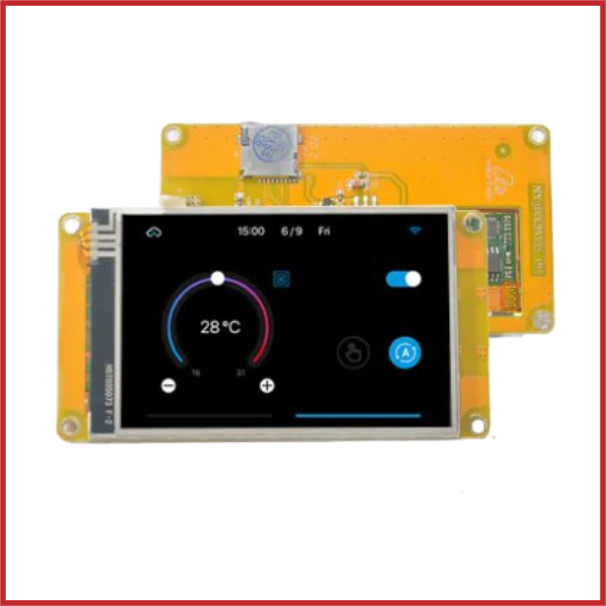

NX4832F035 – Nextion 3.5″ Discovery Series HMI Touch Display
SKU: DIS-0040-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX4832F035 Nextion 3.5″ Discovery Series HMI Touch Display is a high-performance touchscreen solution designed for embedded systems, automation, and IoT applications.
Featuring a vibrant 3.5-inch TFT resistive touchscreen with a 480 × 320 resolution, this display provides a responsive and intuitive interface for smart home systems, industrial controls, instrumentation, and custom electronics projects.
The Discovery Series offers improved processing performance, enhanced image compression, and lower power consumption compared to the Basic Series, enabling smoother and more advanced graphical interfaces.
Using simple TTL UART serial communication, the NX4832F035 integrates seamlessly with platforms such as Arduino, ESP32, STM32, Raspberry Pi, and PLC systems.
Combined with the easy-to-use Nextion Editor software, developers can quickly create professional GUI interfaces using drag-and-drop components, reducing development time and programming complexity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX4832F035.
Series: Nextion Discovery Series.
Display Size: 3.5-inch TFT Display.
Resolution: 480 × 320 pixels.
Touch Type: Resistive Touch Panel (RTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial.
Operating Voltage: 4.5V – 6.0V DC.
MCU: ARM Cortex-M0+ 64MHz Processor.
Flash Memory: 8MB.
RAM (SRAM): 3584 Bytes.
EEPROM: 1024 Bytes.
Backlight: Adjustable LED Backlight.
Brightness: Up to 300 nits.
Storage: MicroSD Card Slot.
Deep Sleep Current: Ultra-low power consumption (as low as 0.25mA).
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Smart home systems, industrial HMI, IoT dashboards, automation controls, instrumentation, and DIY electronics projects.
Included Accessories: 4-pin connection cable and power supply test board.
