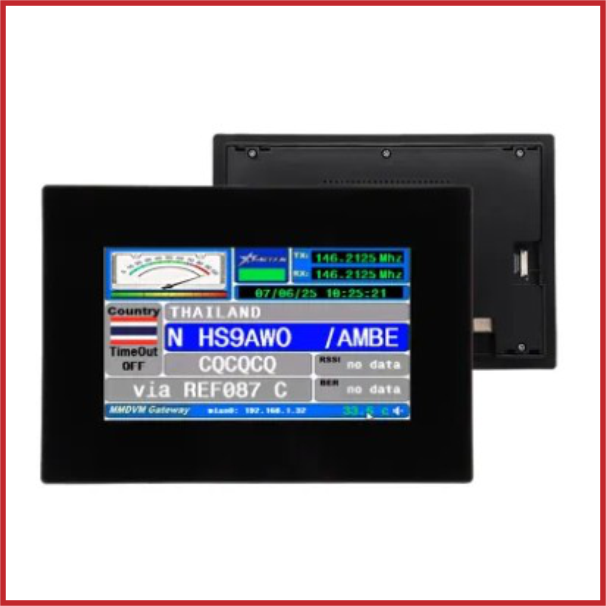

NX8048P070-011C 7.0” Nextion Intelligent Series HMI Risistive Touch Display
SKU: DIS-0045-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX8048P070-011C Nextion 7.0″ Intelligent Series HMI Touch Display is a premium high-performance touchscreen solution designed for advanced embedded GUI applications.
Featuring a vibrant 7.0-inch TFT display with an 800 × 480 resolution and responsive capacitive touch functionality, it provides a professional user interface for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control panels.
Its large display area offers excellent visibility, making it ideal for applications requiring detailed graphics and enhanced user interaction.
As part of the Nextion Intelligent Series, the NX8048P070-011C delivers significantly enhanced performance with a 200MHz MCU, expanded memory, multimedia support, and advanced GUI capabilities including animations, transparent components, audio, and video playback.
Using simple TTL UART serial communication, it integrates easily with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers.
The intuitive Nextion Editor software simplifies interface design with drag-and-drop GUI creation, reducing development time and programming complexity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX8048P070-011C.
Series: Nextion Intelligent Series.
Display Size: 7.0-inch TFT Display.
Resolution: 800 × 480 pixels.
Touch Type: Capacitive Touch Panel (CTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial (4-pin).
Operating Voltage: 4.75V – 6.5V DC.
Operating Current: 430mA @ 5V.
MCU: ARM Processor, 200MHz.
Flash Memory: 128MB.
RAM: 512KB.
EEPROM: 1024 Bytes.
RTC: Built-in Real-Time Clock (RTC).
GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM).
Audio/Video Support: Yes (Intelligent Series feature).
Animation Support: Yes.
Backlight: Adjustable LED Backlight.
Brightness: Up to 300 nits.
Backlight Life: 30,000 hours.
Storage: MicroSD Card Slot (supports up to 32GB, FAT32).
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Dimensions: 181 × 108 × 9.3mm.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and advanced embedded GUI projects.
Included Accessories: 4-pin connection cable and power supply test board.
