NX4827P043-011C 4.3” Nextion Intelligent Series
SKU: DIS-0046-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

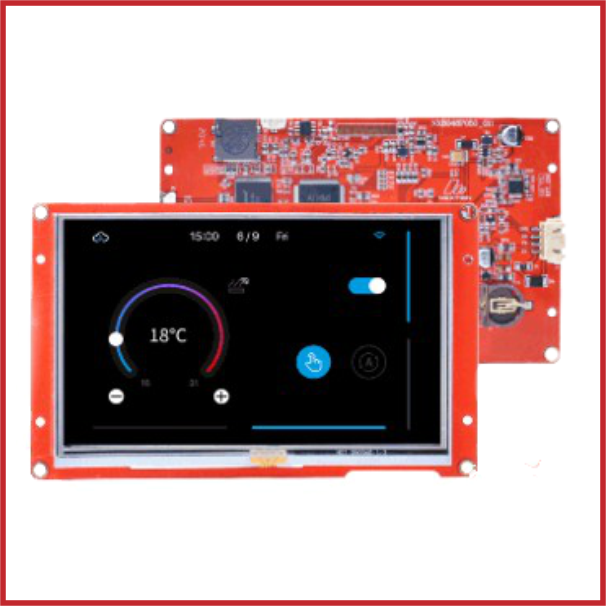

The NX4827P043-011C Nextion 4.3″ Intelligent Series HMI Touch Display is a premium high-performance touchscreen designed for advanced embedded GUI applications.
Featuring a vivid 4.3-inch IPS display with a 480 × 272 resolution and responsive capacitive touch technology, it delivers excellent colour reproduction, wide viewing angles, and a smooth user experience.
Ideal for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control interfaces, this display provides a modern and professional HMI solution.
The IPS panel ensures enhanced clarity and consistent image quality from multiple viewing angles.
As part of the Nextion Intelligent Series, the NX4827P043-011C offers significantly enhanced processing power, expanded memory, multimedia support, and advanced GUI capabilities including animations, transparent components, audio playback, and RTC functionality.
With simple TTL UART serial communication, it integrates seamlessly with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers, helping simplify HMI development using the intuitive Nextion Editor software.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX4827P043-011C.
Series: Nextion Intelligent Series.
Display Size: 4.3-inch IPS TFT Display.
Resolution: 480 × 272 pixels.
Touch Type: Capacitive Touch Panel (CTP).
Display Technology: IPS (Wide Viewing Angle).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial (4-pin).
Operating Voltage: 4.75V – 6.5V DC.
Operating Current: 220mA.
MCU: ARM Processor, 200MHz.
Flash Memory: 128MB.
RAM: 512KB.
EEPROM: 1024 Bytes.
RTC: Built-in Real-Time Clock (RTC).
GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM).
Audio Support: Yes (external speaker support).
Animation Support: Yes.
Backlight: Adjustable LED Backlight.
Brightness: Up to 300 nits.
Backlight Life: 30,000 hours.
Storage: MicroSD Card Slot (supports up to 32GB, FAT32).
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and advanced embedded GUI projects.
Included Accessories: 4-pin connection cable and power supply test board.
