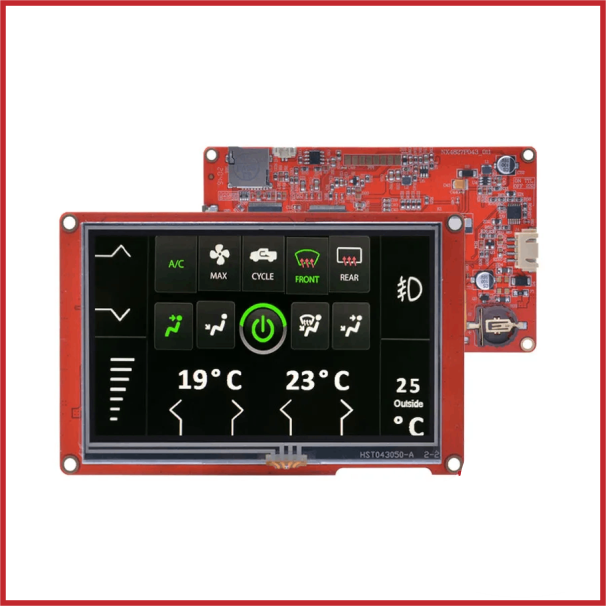

      NX4827P043-011R 4.3” Nextion Intelligent Series

      SKU: DIS-0047-001

      Out of stock

      Availability: Out of Stock

      Short Description
      The NX4827P043-011R Nextion 4.3″ Intelligent Series HMI Touch Display is a powerful and feature-rich touchscreen solution designed for advanced embedded GUI applications. Featuring a 4.3-inch TN TFT display with a 480 × 272 resolution and responsive resistive touch technology, this display delivers reliable performance for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control interfaces. The TN display provides fast response times, making it well-suited for practical control and monitoring applications. As part of the advanced Nextion Intelligent Series, the NX4827P043-011R offers significantly enhanced processing power, expanded memory, multimedia capabilities, and advanced GUI features including animations, transparent components, audio playback, and RTC support. Using simple TTL UART serial communication, it integrates easily with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers. Combined with the intuitive Nextion Editor software, developers can create sophisticated graphical interfaces quickly while reducing programming complexity.
      DIS-0047-001
      Alternative image 1 Alternative image 2 Alternative image 3 Alternative image 4 Alternative image 5 Alternative image 6
      Specifications: Model: NX4827P043-011R. Series: Nextion Intelligent Series. Display Size: 4.3-inch TFT Display. Resolution: 480 × 272 pixels. Touch Type: Resistive Touch Panel (RTP). Display Technology: TN (Twisted Nematic) Display. Display Colours: 65K (16-bit colour). Communication Interface: TTL UART Serial (4-pin). Operating Voltage: 4.75V – 6.5V DC. Operating Current:  220mA. MCU: ARM Processor, 200MHz. Flash Memory: 128MB. RAM: 512KB. EEPROM: 1024 Bytes. RTC: Built-in Real-Time Clock (RTC). GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM). Audio Support: Yes (external speaker support). Animation Support: Yes. Backlight: Adjustable LED Backlight. Brightness: Up to 300 nits. Backlight Life: 30,000 hours. Storage: MicroSD Card Slot (supports up to 32GB, FAT32). Operating Temperature: -20°C to +70°C. Storage Temperature: -30°C to +85°C. Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers. Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and advanced embedded GUI projects. Included Accessories: 4-pin connection cable and power supply test board.
