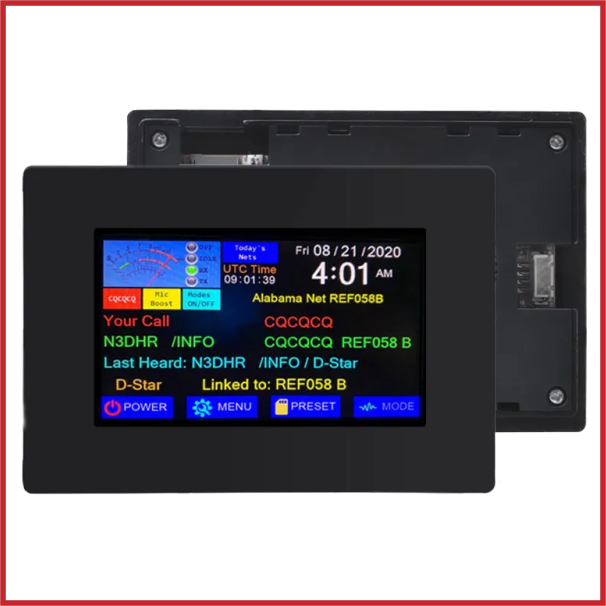

      NX4827P043-011R-Y 4.3” Nextion Intelligent Series with enclosure

      SKU: DIS-0049-001

      Out of stock

      Availability: Out of Stock

      Short Description
      The NX4827P043-011R-Y Nextion 4.3″ Intelligent Series HMI Touch Display is a powerful and ready-to-install touchscreen solution designed for advanced embedded GUI applications. Featuring a 4.3-inch TN TFT display with a 480 × 272 resolution and responsive resistive touch functionality, this model includes a protective enclosure for a clean, professional appearance and simplified installation. It is ideal for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control panels where durability and ease of integration are essential. As part of the advanced Nextion Intelligent Series, the NX4827P043-011R-Y offers enhanced processing power, expanded memory, multimedia support, and advanced GUI capabilities including animations, transparent components, audio playback, and RTC functionality. With simple TTL UART serial communication, it integrates seamlessly with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers. The included enclosure makes it especially suitable for finished commercial and industrial installations.
      DIS-0049-001
      Alternative image 1 Alternative image 2 Alternative image 3 Alternative image 4 Alternative image 5 Alternative image 6
      Specifications: Model: NX4827P043-011R-Y. Series: Nextion Intelligent Series. Display Size: 4.3-inch TFT Display. Resolution: 480 × 272 pixels. Touch Type: Resistive Touch Panel (RTP). Display Technology: TN (Twisted Nematic) Display. Enclosure: Integrated protective enclosure included. Display Colours: 65K (16-bit colour). Communication Interface: TTL UART Serial (4-pin). Operating Voltage: 4.75V – 6.5V DC. Operating Current: 220mA. MCU: ARM Processor, 200MHz. Flash Memory: 128MB. RAM: 512KB. EEPROM: 1024 Bytes. RTC: Built-in Real-Time Clock (RTC). GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM). Audio Support: Yes (external speaker support). Animation Support: Yes. Backlight: Adjustable LED Backlight. Brightness: Up to 300 nits. Backlight Life: 30,000 hours. Storage: MicroSD Card Slot (supports up to 32GB, FAT32). Operating Temperature: -20°C to +70°C. Storage Temperature: -30°C to +85°C. Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers. Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and embedded GUI projects. Included Accessories: 4-pin connection cable, power supply test board, and protective enclosure.
