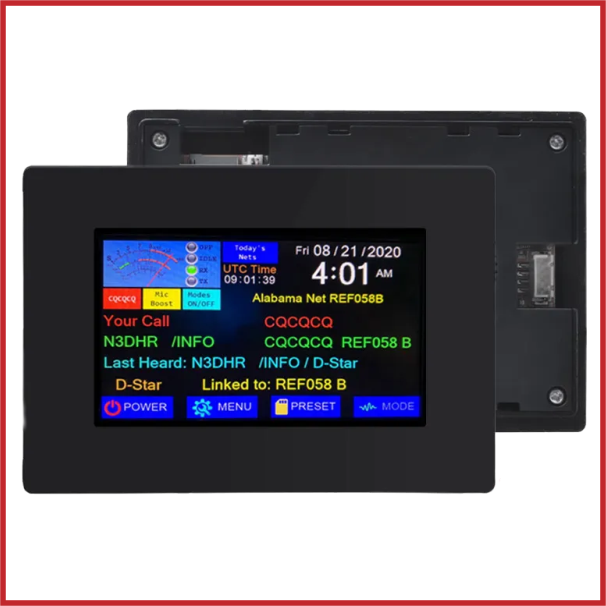

      NX4827P043-011C-Y 4.3” Nextion Intelligent Series with enclosure

      SKU: DIS-0050-001

      Out of stock

      Availability: Out of Stock

      Short Description
      The NX4827P043-011C-Y Nextion 4.3″ Intelligent Series HMI Touch Display is a premium high-performance touchscreen solution designed for advanced embedded GUI applications. Featuring a vibrant 4.3-inch IPS display with a 480 × 272 resolution and responsive capacitive touch technology, this model delivers exceptional image clarity, wide viewing angles, and smooth touch responsiveness. Supplied with a protective enclosure, it offers a clean, professional appearance and simplified installation, making it ideal for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control interfaces. As part of the powerful Nextion Intelligent Series, the NX4827P043-011C-Y offers enhanced processing performance, expanded memory, multimedia support, and advanced GUI features including animations, transparent components, audio playback, and RTC functionality. With simple TTL UART serial communication, it integrates seamlessly with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers. Combined with the intuitive Nextion Editor software, developers can quickly create sophisticated interfaces while reducing development time and programming complexity.
      DIS-0050-001
      Alternative image 1 Alternative image 2 Alternative image 3 Alternative image 4 Alternative image 5 Alternative image 6
      Specifications: Model: NX4827P043-011C-Y. Series: Nextion Intelligent Series. Display Size: 4.3-inch IPS TFT Display. Resolution: 480 × 272 pixels. Touch Type: Capacitive Touch Panel (CTP). Display Technology: IPS (Wide Viewing Angle). Enclosure: Integrated protective enclosure included. Display Colours: 65K (16-bit colour). Communication Interface: TTL UART Serial (4-pin). Operating Voltage: 4.75V – 6.5V DC. Operating Current: 220mA. MCU: ARM Processor, 200MHz. Flash Memory: 128MB. RAM: 512KB. EEPROM: 1024 Bytes. RTC: Built-in Real-Time Clock (RTC). GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM). Audio Support: Yes (external speaker support). Animation Support: Yes. Backlight: Adjustable LED Backlight. Brightness: Up to 300 nits. Backlight Life: 30,000 hours. Storage: MicroSD Card Slot (supports up to 32GB, FAT32). Operating Temperature: -20°C to +70°C. Storage Temperature: -30°C to +85°C. Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers. Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and advanced embedded GUI projects. Included Accessories: 4-pin connection cable, power supply test board, and protective enclosure.
