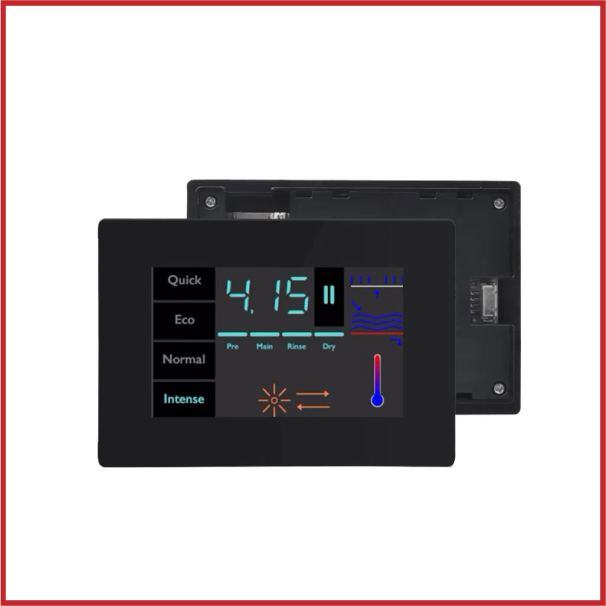

NX4827P043-011R-Y 4.3” Nextion Intelligent Series HMI Resistive Touch Display with enclosure
SKU: DIS-0051-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX4827P043-011R-Y Nextion 4.3″ Intelligent Series HMI Touch Display is a premium embedded touchscreen solution designed for advanced GUI applications requiring durability, performance, and enhanced visual clarity.
Featuring a vivid 4.3-inch IPS display with a 480 × 272 resolution and responsive resistive touch functionality, this model delivers wide viewing angles and excellent colour consistency, making it ideal for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control interfaces.
Supplied with a protective enclosure, it offers a professional appearance and simplified installation for finished projects and commercial environments.
As part of the advanced Nextion Intelligent Series, the NX4827P043-011R-Y provides powerful performance with expanded memory, multimedia support, advanced animations, transparent components, audio playback, and RTC functionality.
With simple TTL UART serial communication, it integrates seamlessly with platforms such as Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers.
Combined with the intuitive Nextion Editor software, developers can quickly create sophisticated user interfaces while reducing development complexity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX4827P043-011R-Y.
Series: Nextion Intelligent Series.
Display Size: 4.3-inch IPS TFT Display.
Resolution: 480 × 272 pixels.
Touch Type: Resistive Touch Panel (RTP).
Display Technology: IPS (Wide Viewing Angle).
Enclosure: Integrated protective enclosure included.
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial (4-pin).
Operating Voltage: 4.75V – 6.5V DC.
Operating Current: 220mA.
MCU: ARM Processor, 200MHz.
Flash Memory: 128MB.
RAM: 512KB.
EEPROM: 1024 Bytes.
RTC: Built-in Real-Time Clock (RTC).
GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM).
Audio Support: Yes (external speaker support).
Animation Support: Yes.
Backlight: Adjustable LED Backlight.
Brightness: Up to 300 nits.
Backlight Life: 30,000 hours.
Storage: MicroSD Card Slot (supports up to 32GB, FAT32).
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and advanced embedded GUI projects.
Included Accessories: 4-pin connection cable, power supply test board, and protective enclosure.
