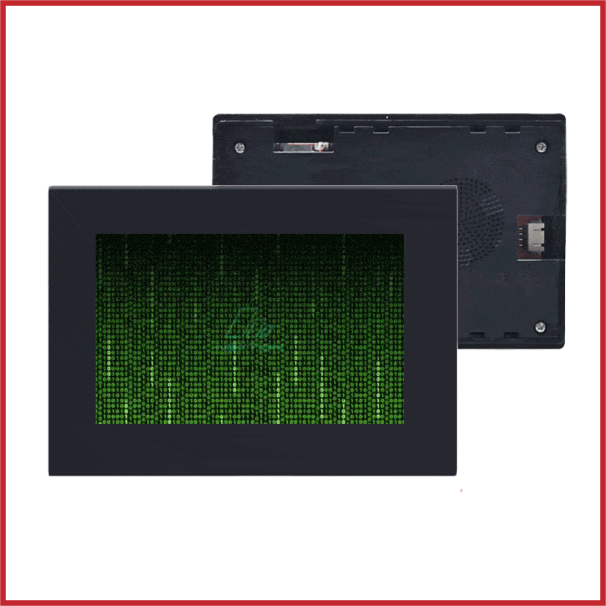

NX8048P050-011R-Y 5.0” Nextion Intelligent Series HMI Resistive Touch Display with enclosure
SKU: DIS-0053-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX8048P050-011R-Y Nextion 5.0″ Intelligent Series HMI Touch Display is a powerful and professional touchscreen solution designed for advanced embedded GUI applications.
Featuring a vibrant 5.0-inch TFT display with an 800 × 480 resolution and responsive resistive touch technology, this display provides an intuitive interface for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control panels.
Supplied with a protective enclosure, it offers a clean, professional finish and simplified installation for commercial and industrial projects.
As part of the advanced Nextion Intelligent Series, the NX8048P050-011R-Y delivers enhanced performance with a fast 200MHz processor, expanded memory, multimedia support, advanced animations, transparent components, audio playback, and RTC functionality.
With simple TTL UART serial communication, it integrates seamlessly with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers.
The intuitive Nextion Editor software simplifies GUI development, allowing users to create sophisticated interfaces quickly and efficiently.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX8048P050-011R-Y.
Series: Nextion Intelligent Series.
Display Size: 5.0-inch TFT Display.
Resolution: 800 × 480 pixels.
Touch Type: Resistive Touch Panel (RTP).
Display Technology: TFT LCD.
Enclosure: Integrated protective enclosure included.
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial (4-pin).
Operating Voltage: 4.75V – 6.5V DC.
Operating Current: 220mA.
MCU: ARM Processor, 200MHz.
Flash Memory: 128MB.
RAM: 512KB.
EEPROM: 1024 Bytes.
RTC: Built-in Real-Time Clock (RTC).
GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM).
Audio/Video Support: Yes (Intelligent Series feature).
Animation Support: Yes.
Backlight: Adjustable LED Backlight.
Brightness: Up to 300 nits.
Backlight Life: 30,000 hours.
Storage: MicroSD Card Slot (supports up to 32GB, FAT32).
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and advanced embedded GUI projects.
Included Accessories: 4-pin connection cable, power supply test board, and protective enclosure.
