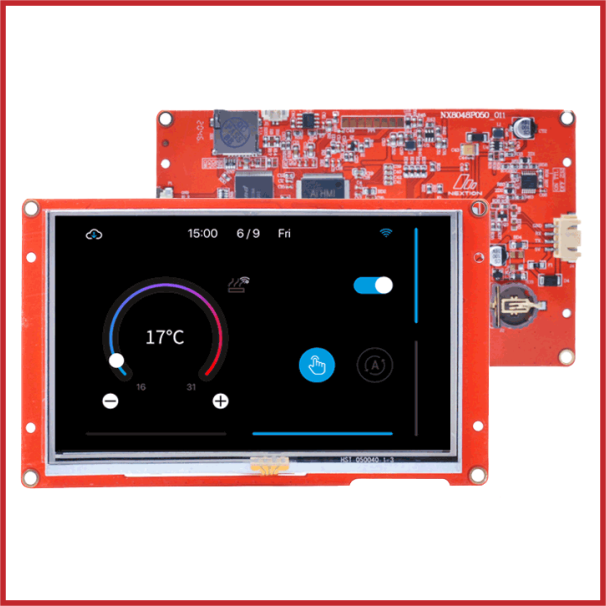

NX8048P050-011C 5.0” Nextion Intelligent Series
SKU: DIS-0054-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX8048P050-011C Nextion 5.0″ Intelligent Series HMI Touch Display is a premium high-performance touchscreen solution designed for advanced embedded GUI applications.
Featuring a vibrant 5.0-inch TFT display with an 800 × 480 resolution and responsive capacitive touch technology, this display delivers a smooth, intuitive user experience for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control interfaces.
Its slim design and vivid display make it ideal for applications requiring detailed graphics and responsive touch interaction.
The Intelligent Series also supports multimedia functionality, animations, and advanced interface design for more sophisticated projects.
Powered by a fast 200MHz processor and enhanced memory, the NX8048P050-011C integrates easily with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers using simple TTL serial communication.
With the intuitive Nextion Editor software, developers can quickly create professional graphical interfaces while reducing development complexity and project time.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX8048P050-011C.
Series: Nextion Intelligent Series.
Display Size: 5.0-inch TFT Display.
Resolution: 800 × 480 pixels.
Touch Type: Capacitive Touch Panel (CTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial (4-pin).
Operating Voltage: 4.65V – 6.5V DC.
Operating Current: 220mA @ 5V.
MCU: ARM Processor, 200MHz.
Flash Memory: 128MB.
RAM: 512KB SRAM.
EEPROM: 1024 Bytes.
RTC: Built-in Real-Time Clock (RTC).
GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM).
Audio/Video Support: Yes.
Animation Support: Yes.
Backlight: Adjustable LED Backlight.
Brightness: Up to 300 nits.
Backlight Life: 30,000 hours.
Storage: MicroSD Card Slot (supports up to 32GB, FAT32).
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and advanced embedded GUI projects.
Included Accessories: 4-pin connection cable and power supply test board.
