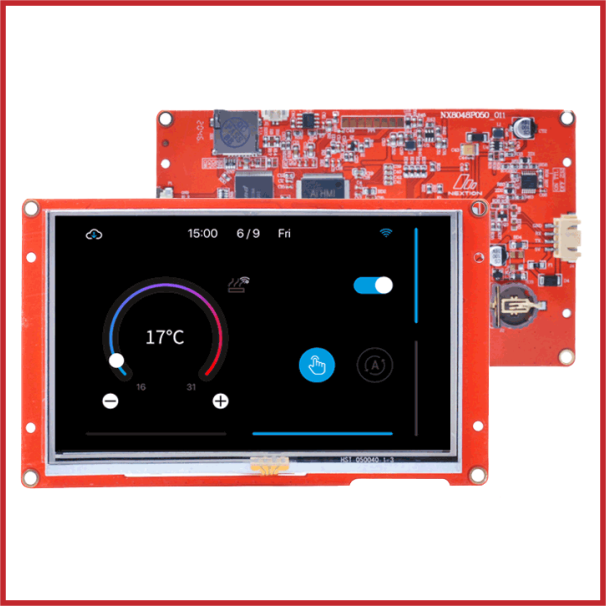

NX8048P050-011R 5.0” Nextion Intelligent Series HMI Resistive Touch Display
SKU: DIS-0055-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX8048P050-011R Nextion 5.0″ Intelligent Series HMI Touch Display is a high-performance touchscreen solution designed for advanced embedded GUI applications.
Featuring a vibrant 5.0-inch TFT display with an 800 × 480 resolution and responsive resistive touch technology, this display provides a reliable and intuitive user interface for industrial automation, smart home systems, IoT dashboards, instrumentation, and custom control applications.
Its responsive resistive touch panel makes it suitable for use with gloves or stylus input, ideal for industrial and workshop environments.
As part of the powerful Nextion Intelligent Series, the NX8048P050-011R offers advanced processing capabilities, expanded memory, multimedia support, and sophisticated GUI features including animations, transparent components, audio playback, video support, and RTC functionality.
Using simple TTL UART serial communication, it integrates seamlessly with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers.
Combined with the intuitive Nextion Editor software, developers can create professional interfaces quickly while simplifying programming requirements.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX8048P050-011R.
Series: Nextion Intelligent Series.
Display Size: 5.0-inch TFT Display.
Resolution: 800 × 480 pixels.
Touch Type: Resistive Touch Panel (RTP).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial (4-pin).
Operating Voltage: 4.65V – 6.5V DC.
Operating Current: 220mA @ 5V.
MCU: ARM Processor, 200MHz.
Flash Memory: 128MB.
RAM: 512KB SRAM.
EEPROM: 1024 Bytes.
RTC: Built-in Real-Time Clock (RTC).
GPIO: 8 Extended GPIO Pins (IO6–IO7 support PWM).
Audio/Video Support: Yes.
Animation Support: Yes.
Backlight: Adjustable LED Backlight.
Brightness: Up to 300 nits.
Backlight Life: 30,000 hours.
Storage: MicroSD Card Slot (supports up to 32GB, FAT32).
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Industrial HMI, smart home systems, IoT dashboards, automation controls, instrumentation, and advanced embedded GUI projects.
Included Accessories: 4-pin connection cable and power supply test board.
