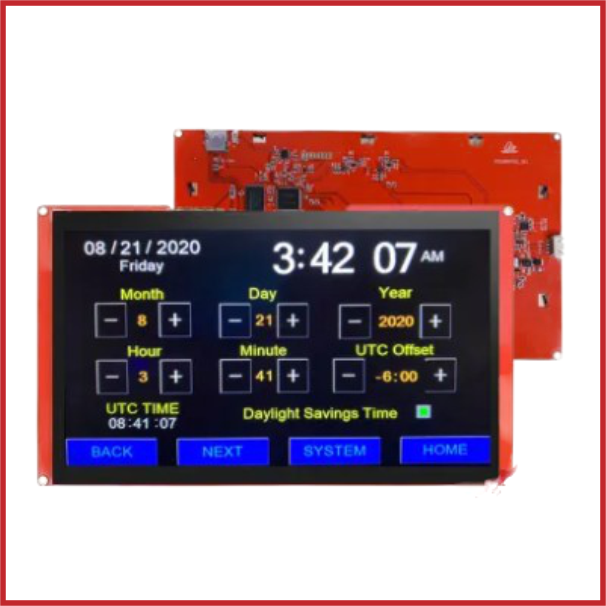

NX1060P101-011C-I 10.1” Nextion Intelligent Series HMI Capacitive Touch Display
SKU: DIS-0059-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX1060P101-011C-I Nextion 10.1″ Intelligent Series HMI Touch Display is a premium large-format touchscreen solution designed for advanced embedded GUI applications.
Featuring a vivid 10.1-inch IPS display with a high-resolution 1024 × 600 screen and responsive capacitive touch technology, this display delivers exceptional image clarity, wide viewing angles, and smooth touch responsiveness.
Ideal for industrial automation, smart home systems, IoT dashboards, instrumentation, medical equipment, and custom control interfaces, it provides a professional and modern HMI solution for demanding applications.
As part of the advanced Nextion Intelligent Series, the NX1060P101-011C-I offers powerful processing performance, expanded memory, multimedia support, and sophisticated GUI capabilities including animations, transparent components, audio playback, video support, and RTC functionality.
Using simple TTL UART serial communication, it integrates seamlessly with Arduino, ESP32, STM32, Raspberry Pi, PLCs, and other UART-compatible controllers.
Combined with the intuitive Nextion Editor software, developers can quickly create advanced graphical interfaces while reducing programming complexity and development time.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NX1060P101-011C-I.
Series: Nextion Intelligent Series.
Display Size: 10.1-inch IPS TFT Display.
Resolution: 1024 × 600 pixels.
Touch Type: Capacitive Touch Panel (CTP).
Display Technology: IPS (Wide Viewing Angle).
Display Colours: 65K (16-bit colour).
Communication Interface: TTL UART Serial (4-pin).
Operating Voltage: 4.65V – 6.5V DC.
Operating Current: 500mA @ 5V.
MCU: ARM Processor, 200MHz.
Flash Memory: 128MB.
RAM: 512KB SRAM.
EEPROM: 1024 Bytes.
RTC: Built-in Real-Time Clock (RTC).
GPIO: 8 Extended GPIO Pins (PWM support on selected pins).
Audio/Video Support: Yes.
Animation Support: Yes.
Backlight: Adjustable LED Backlight.
Brightness: Up to 300 nits.
Backlight Life: 30,000 hours.
Storage: MicroSD Card Slot (supports up to 32GB, FAT32).
Operating Temperature: -20°C to +70°C.
Storage Temperature: -30°C to +85°C.
Compatibility: Arduino, ESP32, STM32, Raspberry Pi, PLCs, and UART-compatible controllers.
Applications: Industrial HMI, smart home systems, IoT dashboards, medical devices, automation controls, instrumentation, and advanced embedded GUI projects.
