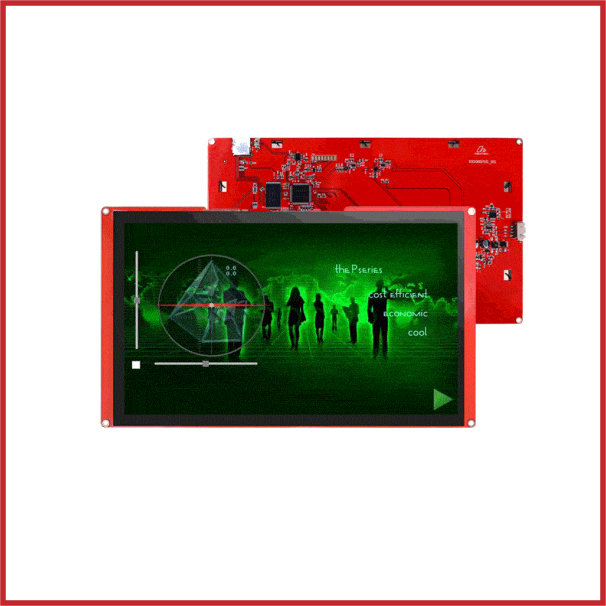

NX1060P101-011R-I 10.1” Nextion Intelligent Series HMI Resistive Touch Display
SKU: DIS-0060-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NX1060P101-011R-I Nextion 10.1” Intelligent HMI Display is a high-performance touchscreen interface module designed for embedded and industrial control applications.
It features a 10.1-inch 1024×600 resistive touch TFT display with an onboard processor and memory, enabling standalone UI operation without load on the host controller.
Using UART serial communication and Nextion Editor software, it allows rapid development of graphical user interfaces with minimal coding, making it ideal for automation systems, IoT devices, and control panels.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display size: 10.1-inch TFT LCD.
Resolution: 1024 × 600 pixels.
Touch type: Resistive touch panel (RTP).
Interface: UART (TTL serial, 4-pin: VCC, TX, RX, GND).
Operating voltage: 5V DC.
Onboard processor: 200 MHz Nextion intelligent MCU.
Flash memory: 128 MB.
SRAM: 512 KB.
EEPROM: 1024 bytes.
GPIO: 8 digital I/O pins (2 PWM-capable).
Audio support: Yes (built-in buzzer/audio output support).
RTC: Built-in real-time clock.
Brightness: 300 nits.
Software: Nextion Editor GUI development platform.
Operating principle: Standalone HMI with serial command control.
