Nextion I/O Extended Expansion Board
SKU: DIS-0063-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

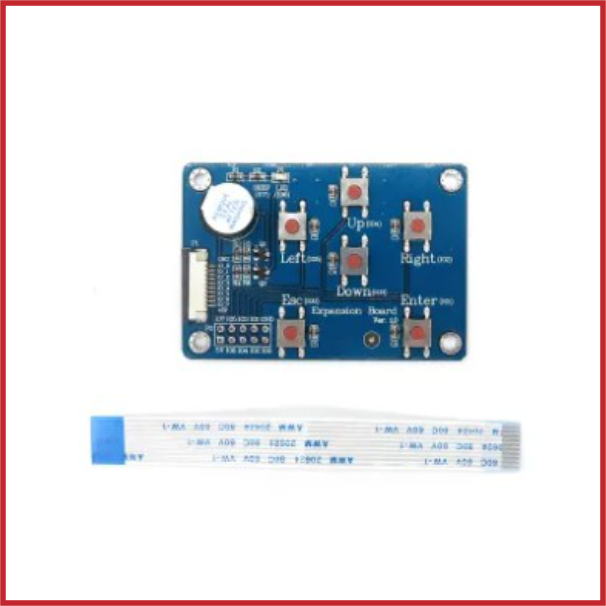

The Nextion I/O Extended Expansion Board is an official accessory designed for Nextion Enhanced and Intelligent Series HMI displays.
It provides easy access to the display’s GPIO interface through a breakout and adds convenient onboard user controls for development and testing.
The board converts the display’s fine-pitch FPC GPIO connector into standard headers, allowing simple connection to external circuits and microcontrollers.
It also includes 6 navigation buttons (Up, Down, Left, Right, Enter, Esc), along with an integrated buzzer and status LEDs, enabling direct user interaction without additional hardware.
This expansion board is ideal for prototyping, debugging, and creating interactive control interfaces using Nextion displays.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: Nextion Enhanced & Intelligent HMI displays (not compatible with Basic series).
GPIO access: Breakout for up to 8 GPIO pins from the display.
Interface: FPC-to-header expansion (GPIO breakout to 2.54 mm pins).
Operating voltage: 5V DC.
Onboard controls:
6 navigation buttons (Up, Down, Left, Right, Enter, Esc).
Audio feedback: Integrated buzzer.
Indicators: Status LEDs for visual feedback.
Function: GPIO expansion + manual UI navigation/debug control.
Connector type: FPC display connector to expansion header interface.
Typical board size: ~65 × 45 mm.
Use case: Prototyping, UI testing, GPIO expansion, embedded control development.
