Nextion IO Adapter
SKU: DIS-0064-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

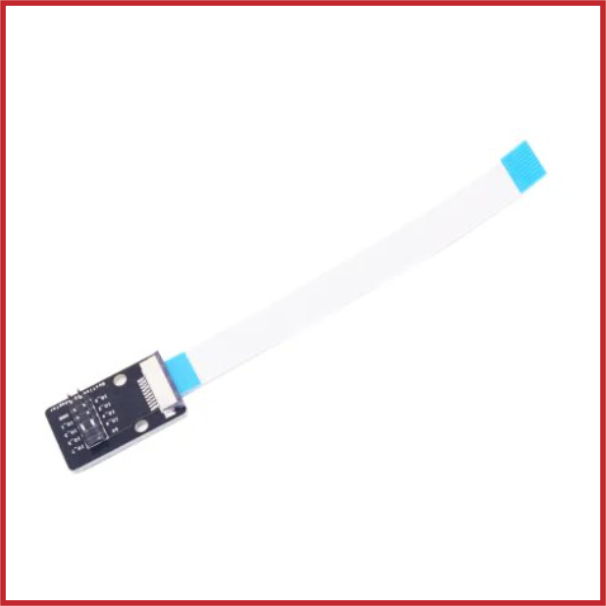

The Nextion IO Adapter is a compact breakout accessory designed for Nextion Enhanced and Intelligent Series HMI displays, providing convenient access to the display’s GPIO interface through standard pin headers.
It converts the display’s FPC connector into a user-friendly 2.54 mm header layout, enabling quick connection to external components such as sensors, relays, and microcontrollers.
This makes it ideal for prototyping, testing, and integrating Nextion displays into embedded systems and control applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: Nextion Enhanced HMI Display Series (2.4” to 7.0”).
Function: GPIO breakout / I/O expansion adapter.
Interface: FPC connector to 2.54 mm pin headers.
Operating voltage: 5V DC (digital level).
GPIO access: Breaks out display digital and PWM GPIO lines.
Connector type: FFC/FPC display interface to pin header.
Board size: 30 × 20 mm.
Weight: 10 g.
Signal level: 5V logic compatible.
Version: 1.0.
Use case: Prototyping, debugging, and external device interfacing.
