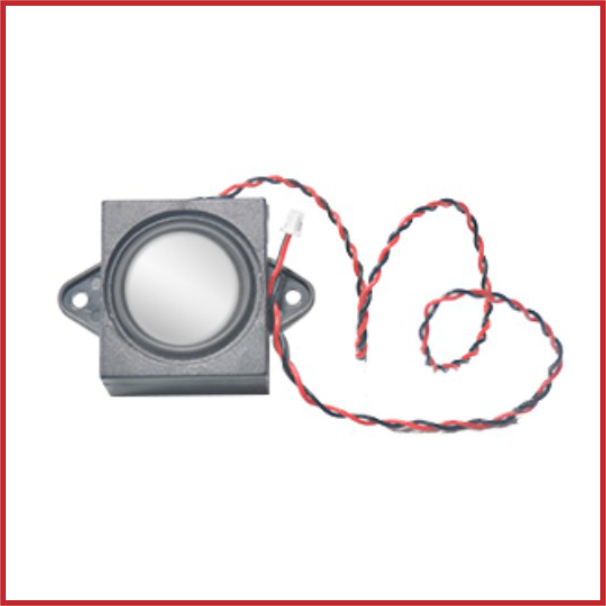

Nextion BOX Speaker
SKU: DIS-0066-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Nextion BOX Speaker is a compact external speaker designed specifically for Nextion Intelligent Series HMI displays without enclosures.
It provides simple plug-and-play audio output for voice prompts, alarms, notifications, and multimedia playback in HMI projects and embedded systems.
Compatible with select 4.3”, 5.0”, 7.0”, and 10.1” Intelligent Series displays, it connects via a 2-pin connector for quick integration into smart home, industrial, and IoT applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type: External BOX Speaker for Nextion HMI displays.
Compatibility: Nextion Intelligent Series displays (4.3”, 5.0”, 7.0”, 10.1”).
Input power: 1.5W.
Frequency range: 100Hz – 3KHz.
Connector type: 1.25 mm pitch 2-pin female connector (1.25T-2-2A).
Wire length: 250 mm.
Dimensions: 31 × 28 × 14.8 mm.
Operating temperature: -20°C to 65°C.
Application: Audio alerts, voice feedback, and multimedia playback for Nextion HMI projects.
