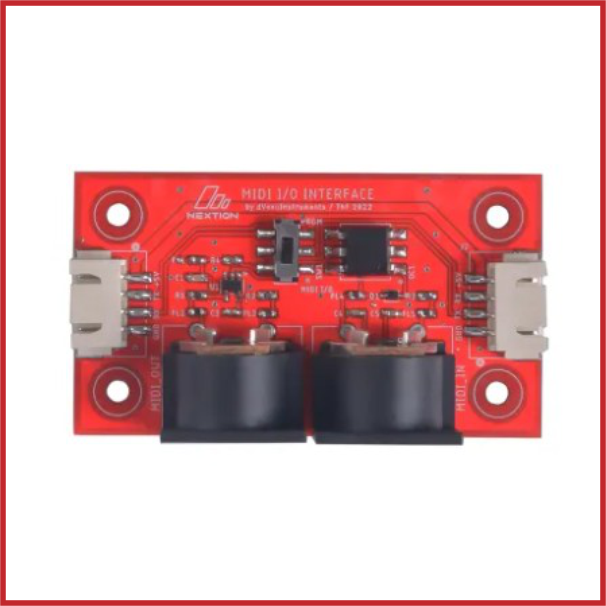

Nextion MIDI I/O interface
SKU: DIS-0067-001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Nextion MIDI I/O Interface is a professional TTL serial-to-MIDI converter module designed for Nextion HMI displays and other microcontrollers with UART communication.
It enables seamless MIDI IN and MIDI OUT connectivity through standard 5-pin DIN ports, allowing Nextion displays to function as standalone MIDI controllers, receivers, or interfaces in audio and music control applications.
Featuring optimized drivers, EMI filtering, and isolated MIDI input circuitry, it ensures reliable communication even with long MIDI cables and in electrically noisy studio or stage environments.
The onboard mode switch allows users to toggle between MIDI communication mode and programming pass-through mode for convenient device programming and debugging.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type: TTL Serial to MIDI I/O Interface.
Compatibility: All Nextion display series (Basic, Discovery, Enhanced & Intelligent).
Operating voltage: 5V DC.
Current consumption: Max 13mA.
Pass-through current: Up to 2A (5V supply from J1 to J2).
MIDI support: MIDI IN & MIDI OUT (simultaneous operation).
MIDI connector type: 2 × standard 5-pin DIN.
Serial interface: TTL UART (31250 baud MIDI standard).
TTL RX level: 3.3V (5V tolerant).
TTL TX level: 5V.
Connector type: 2 × 4-pin XH 2.5 mm connectors.
Switching modes: PRGM mode / MIDI I/O mode.
EMI protection: Integrated line filtering for stable communication.
Operating temperature: -20°C to 70°C.
PCB dimensions: 67 × 38 × 25 mm.
Included accessories: 2 × XH2.54 4-pin cables.
