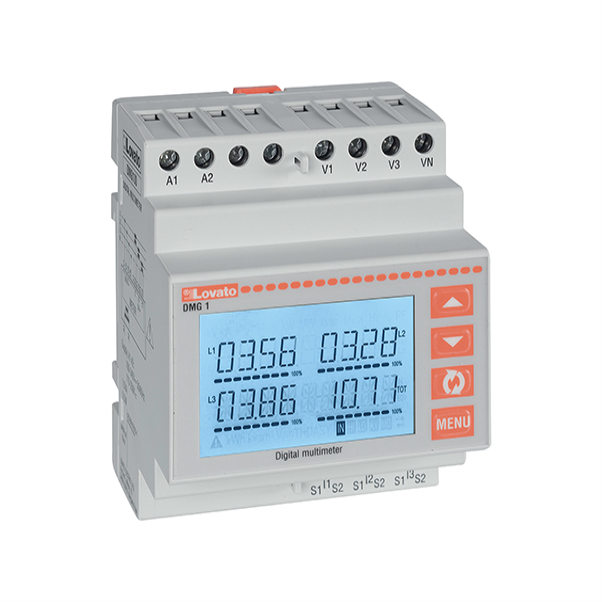

DMG110 MODULAR POWER ANALYSER + RS485
SKU: DMG110
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
DMG100 series digital multi-meters / Power analysers:
DMG digital multi-meters and power analysers are equipped with a digital LCD display providing extremely clear, intuitive, and flexible viewing of all electrical parameters in an installation.
DMG digital multi-meters in a modular housing (4 modules wide).
DMG100 series LCD multi-meters economical with icon display.
Input current: CT - 1A or 5A.
Voltage measurement: 50 - 720 VAC L-L.
Harmonic analysis of V and I up to the 15th order.
Auxiliary power supply: 100 - 240 VAC / 120 - 250 VDC.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: DMG110.
DESCRIPTION: Modular power analyser with RS485 interface.
VOLTAGE/CURRENT: ±0.5% (True RMS measurements).
Power: ±1% f.s.
Frequency: ±0.05%.
ACTIVE ENERGY: Class 1.
MOUNTING: DIN rail mounting (aligns with standard MCB 45mm cutout).
MODULE WIDTH X 18 (MM): 4.
