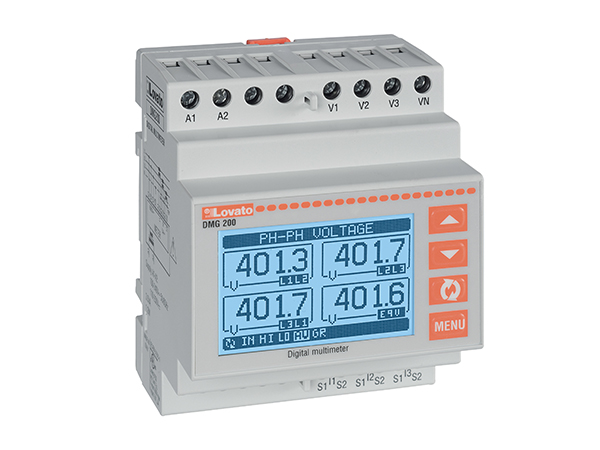

DMG210 MODULAR POWER ANALYSER + RS485
SKU: DMG210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
DMG200 series digital multi-meters / Power analysers:
DMG digital multi-meters and power analysers are equipped with a digital LCD display providing extremely clear, intuitive, and flexible viewing of all electrical parameters in an installation.
DMG digital multi-meters in a modular housing (4 modules wide).
DMG200 series LCD multi-meters.
Input current: CT - 5A.
Graphic backlight LCD display.
Voltage measurement: 20 - 830 VAC L-L.
Auxiliary power supply: 100 - 240 VAC / 110 - 250 VDC.
Buy currently uses Select Automation shop pricing and checkout.
Specification:
SERIES: DMG210
DESCRIPTION: modular power analyser with RS485 interface Modular power analyser.
VOLTAGE/CURRENT: ±0.5% (True RMS measurements)
Power: ±1% f.s.
Frequency: ±0.05%
ACTIVE ENERGY: Class 1
MOUNTING: DIN rail mounting (aligns with standard MCB 45mm cutout)
MODULE WIDTH X 18 (MM): 4
