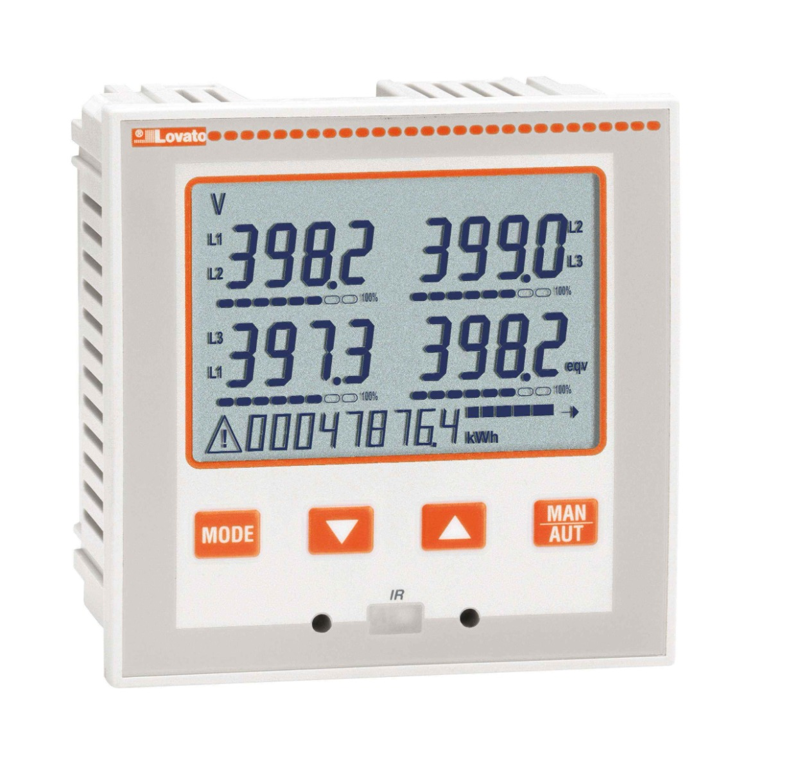

DMG600 SERIES: 96mm PANEL MOUNT MULTI-METER
SKU: DMG600
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
DMG600 series digital multi-meters / Power analysers:
DMG600 series (economical).
Backlit LCD icon display.
Input current: CT - 1A or 5A.
Voltage measurement: 50 - 720 VAC L-L.
Auxiliary power supply: 90 - 484 VAC / 94 - 300 VDC.
True RMS measurements of voltage and current values.
Harmonic analysis of voltage and current up to the 15° order.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: DMG600
DESCRIPTION: Digital panel mount power analyser
AUXILIARY POWER SUPPLY: 90 - 484 VAC / 94 - 300 VDC
INPUT CURRENT: CT - 1A or 5A.
VOLTAGE MEASUREMENT: 50 - 720 VAC L-L
VOLTAGE/CURRENT: ±0.5%
POWER: ±1% f.s.
ACTIVE ENERGY: Class 1 (IEC/EN 62053-21)
REACTIVE ENERGY: Class 2 (IEC/EN 62053-23)
EXPANSION SLOTS: 1
MOUNTING: Panel mount (96 x 96 mm)
