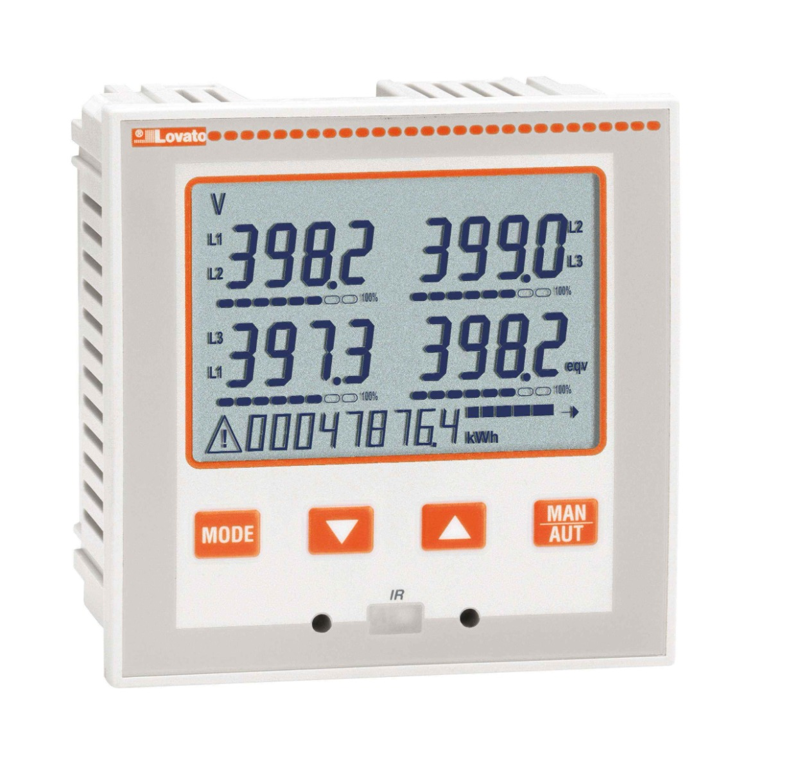

DMG610 SERIES: 96mm P/MOUNT MULTI-METER + RS485
SKU: DMG610
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
DMG600 series digital multimeters / Power analysers:
DMG600 series (economical).
Backlit LCD icon display.
Input current: CT - 1A or 5A.
Voltage measurement: 50 - 720 VAC L-L.
Auxiliary power supply: 90 - 484 VAC / 94 - 300 VDC.
True RMS measurements of voltage and current values.
Harmonic analysis of voltage and current up to the 15° order.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: DMG610.
DESCRIPTION: Digital panel mount power analyser(with RS485 port).
AUXILIARY POWER SUPPLY: 90 - 484 VAC / 94 - 300 VDC.
INPUT CURRENT: CT - 1A or 5A.
VOLTAGE MEASUREMENT: 50 - 720 VAC L-L.
VOLTAGE/CURRENT: ±0.5%.
POWER: ±1% f.s.
ACTIVE ENERGY: Class 1 (IEC/EN 62053-21).
REACTIVE ENERGY: Class 2 (IEC/EN 62053-23).
EXPANSION SLOTS: 1.
MOUNTING: Panel mount ( 96 x 96 mm).
COMMUNICATION PORT: RS485.
