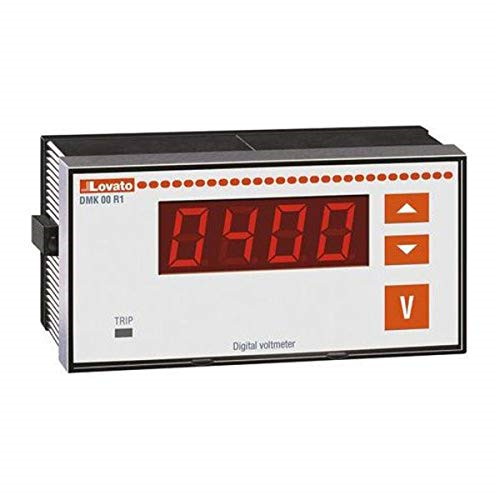

1PH 15-660VAC DIGITAL VOLTMETER RELAY
SKU: DMK00R1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Digital panel meters (measuring and monitoring instruments):
True RMS measurements.
Class 0.5 (±0.25% full scale ± 1 digit).
1 changeover relay output 8A 250 VAC 1.
Auxiliary supply 220 - 240 VAC (others on request).
Memory storage of maximum and minimum values.
Programmable time delay for max, min or voltage/current loss (0 - 900 second).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: DMK series.
DESCRIPTION: Single phase digital voltage monitor.
AUXILIARY POWER SUPPLY: 220 - 240 VAC.
CLASS: 0.5 (±0.25% full scale ± 1 digit).
MEMORY: Storage of maximum and minimum values.
1 CHANGEOVER RELAY OUTPUT: 8A 250 VAC 1.
MOUNTING: Panel mount.
DIMENSIONS (MM): (H) 48 x (W) 96.
OUTPUT: Relay out.
MONITORING RANGE: 15-660 VAC.
