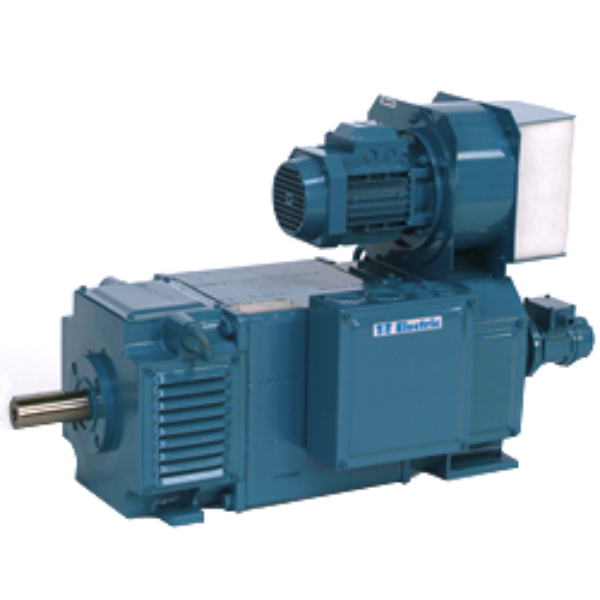

2-Pole DC Motor, 112 Frame Size, 1-200kW Output Power
SKU: DMP112
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The DMP series, which contains motors with outputs ranging from 1 to 200 kW and torques ranging from 5 to 1000 Nm, includes the T-T Electric DC Motor DMP112.
These motors have great endurance and efficiency and are built for a range of industrial uses.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 1-200 kW.
Torque: 5-1000 Nm.
Frame Size: 112.
Cooling Forms: IC06 (IP23) (Force ventilated), IC17 (IP23) (Single pipe ventilated), IC37 (IP54) (Double pipe ventilated), IC410 (IP54) (Totally enclosed), IC416 (IP54) (Totally enclosed, fan cooled).
Protection: IP55.
Insulation Class: F.
Temperature Rise: 105°C by resistance.
Overload Capacity: LT for 15 seconds, 2.0 x nominal armature current for 30 seconds every 15 minutes.
Terminal Box Position: Standard: top mounting.
Bearings: Sealed-for-life preloaded ball bearings.
