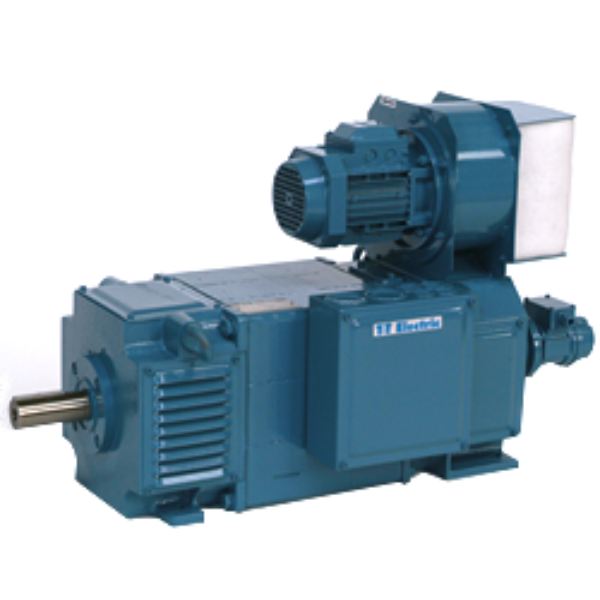

DMP DC Motor, 3x250-280 V, 160 Frame Size
SKU: DMP160-4LB-250
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-performance DC motor made for industrial applications requiring dependable and sturdy operation is the T-T Electric DMP160-4LB-250.
The stator and armature of this motor are fully laminated, guaranteeing minimum torque ripple and superior thermal performance.
It is a flexible option for a range of industrial settings because to its small square frame design, which makes installation and maintenance simple.
The DMP160-4LB-250 is constructed in accordance with IEC standards and offers a variety of cooling and mounting choices to meet the demands of certain applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 1-200 kW.
Voltage: 3x250-280 V. 60 Hz
Torque: 5-1000 Nm.
Frame Size: 160.
Number of Poles: 4.
Cooling Forms: IC06 (IP23) - Force ventilated, IC17 (IP23) - Single pipe ventilated, IC37 (IP54) - Double pipe ventilated, IC410 (IP54) - Totally enclosed, IC416 (IP54) - Totally enclosed, fan cooled, IC666 (IP54) - Air-air cooled, IC86W (IP54) - Air-water cooled.
Protection: IP55.
Mounting Forms: IM1001 - Horizontal foot, IM1002 - Horizontal foot, two shaft ends, IM2001 - Horizontal foot and flange, IM2011 - Vertical foot and flange.
