DMP DC Motor, 6309-2RS1-HT-C3 Non-drive end Bearings
SKU: DMP160-6309-2RS1-HT-C3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

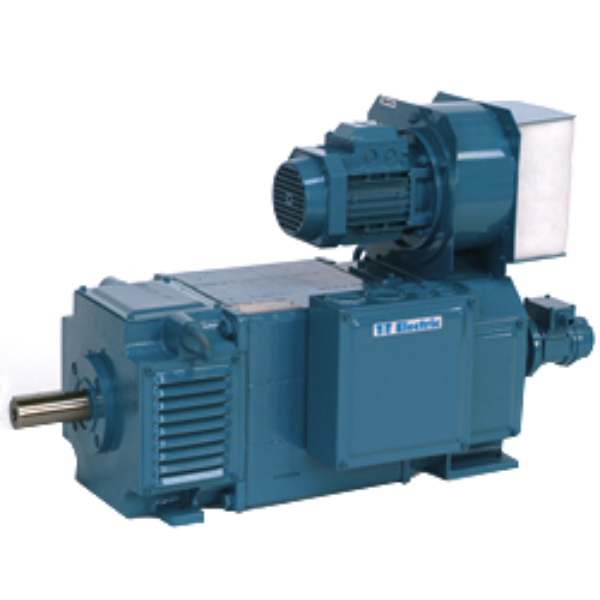

The T-T Electric DMP160-6309-2RS1-HT-C3 is a high-performance DC motor designed for industrial applications that require robust and reliable operation.
This motor features a fully laminated stator and armature, ensuring excellent thermal performance and low torque ripple.
Its compact square frame design allows for easy installation and maintenance, making it a versatile choice for various industrial environments.
The DMP160-6309-2RS1-HT-C3 is built to conform with IEC standards and is available with multiple cooling and mounting options to suit specific application needs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 1-200 kW
Bearings: 6309-2RS 1-HT-C3 non-drive end Bearing
Torque: 5-1000 Nm
Frame Size: 160
Cooling Forms: IC06 (IP23) - Force ventilated, IC17 (IP23) - Single pipe ventilated, IC37 (IP54) - Double pipe ventilated, IC410 (IP54) - Totally enclosed, IC416 (IP54) - Totally enclosed, fan cooled, IC666 (IP54) - Air-air cooled, IC86W (IP54) - Air-water cooled.
Protection: IP55.
Mounting Forms: IM1001 - Horizontal foot, IM1002 - Horizontal foot, two shaft ends, IM2001 - Horizontal foot and flange, IM2011 - Vertical foot and flange.
