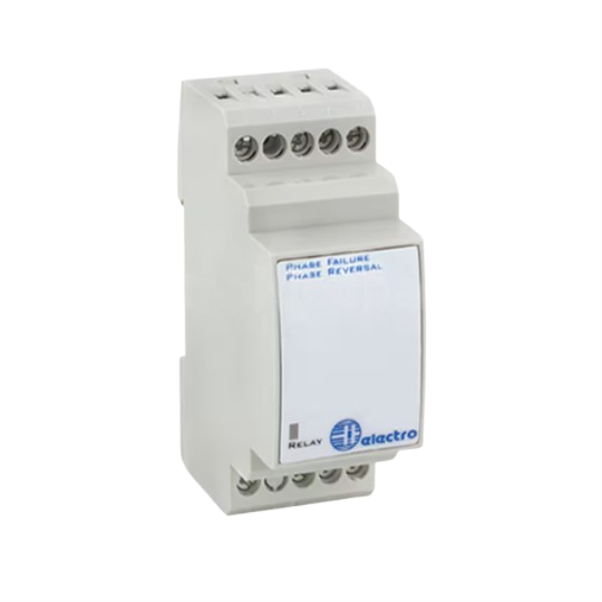

PHASE FAILURE AND REVERSAL RELAY 400VAC, failure/reversal relay
SKU: DPF1400A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Phase Failure / Reversal Monitor:
Compact modular modules in the Electro D series of control and timing devices make it simple to integrate them into distribution boards or standard panels.
They align with ordinary tiny circuit breakers (MCBs) and attach straight onto DIN rail.
Three phase supply voltage is monitored using a phase failure/reversal monitor.
For protection against phase reversal, phase loss, and phase imbalance, the unit is perfect.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Keeps an eye on their own supply.
Relay with 10A SPDT output.
Relay ON LED indicator.
Mountable on a modular 35.5mm DIN rail.
Analog microprocessor with high resolution.
Detects imbalance, loss, and phase reversal.
Specifications:
DESCRIPTION: Failure/reversal relay.
CONTACT: 10A SPDT.
INPUT: Pin 1, 5 & 9, L1, L2 & L3.
RANGE: 8% NPS voltage.
RATED CURRENT: 10A.
RATED VOLTAGE: 250V.
MECHANICAL LIFE: 10x106 cycles.
PROTECTION INDEX IP: IP 20.
OPERATING TEMPERATURE: -10 to + 50°C.
STORAGE TEMPERATURE: -50 to + 85°C.
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
