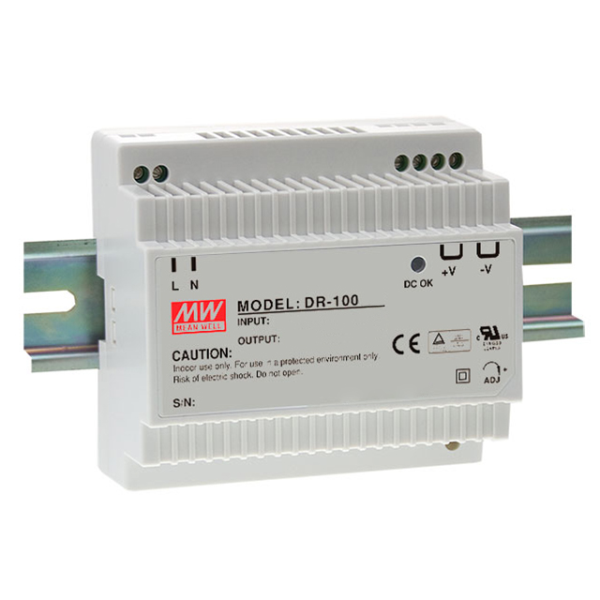

Din Rail Power Supply 24V DC 100W

Pricing available on request Description: A 100W industrial DIN rail power supply with a single output, the Mean Well DR-100-24 is made for a variety of industrial uses. It has a wide variety of AC inputs and several safeguards, including as overload, overvoltage, short circuit, and overtemperature. The power supply is simple to install on DIN rail TS-35/7.5 or 15 and is cooled by free air circulation. It uses less than 1W of electricity when not in use and has an LED indicator for power on state. The DR-100-24 is constructed to exacting specifications, guaranteeing dependable operation and longevity. Specifications: Output Voltage: 24V DC. Rated Current: 4.2A. Rated Power: 100 W. Voltage Range: 88 ~ 264VAC / 124 ~ 370VDC. Frequency Range: 47 ~ 63Hz. Efficiency: 89%. Dimensions: 100mm (L) x 93mm (W) x 56mm (H). Weight: 0.35Kg. Protections: Short circuit, overload, over voltage, over temperature. Operating Temperature: -20 ~ +60°C. Humidity: 20 ~ 90% RH non-condensing. Safety Standards: UL60950-1 approved, design refer to EN50178. EMC Compliance: EN61204-3, EN55032 Class B, EN61000-3-2, -3.
