Din Rail Power Supply 24V DC 120W
SKU: DR-120-24
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

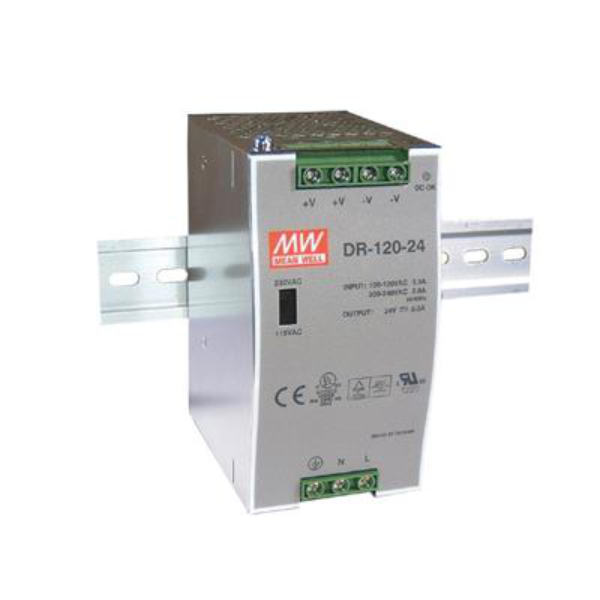

A sturdy AC-DC industrial DIN rail power supply with a broad range of applications is the Mean Well DR-120-24.
It is appropriate for a range of industrial and automation systems since it produces a steady 24V DC output at 5A.
The unit is made to be put on a DIN rail, which makes installation and maintenance simple, and it has a metal housing for durability.
Specifications:
Output Power: 120W.
Output Voltage: 24V DC.
Output Current: 5A.
Input Voltage: 88-132V AC / 176-264V AC (selectable by switch).
Efficiency: 84%.
Dimensions: 65.5mm (W) x 125.2mm (H) x 100mm (D).
Weight: 872.5 grams.
Protections: Short circuit, overload, over voltage, over temperature.
Operating Temperature: -10°C to +60°C.
Compliance: UL508, UL60950-1, EN55032, EN61000-3-2, EN61000-4-2,3,4,5,6,8,11.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 120W.
Output Voltage: 24V DC.
Output Current: 5A.
Input Voltage: 88-132V AC / 176-264V AC (selectable by switch).
Efficiency: 84%.
Dimensions: 65.5mm (W) x 125.2mm (H) x 100mm (D).
Weight: 872.5 grams.
Protections: Short circuit, overload, over voltage, over temperature.
Operating Temperature: -10°C to +60°C.
Compliance: UL508, UL60950-1, EN55032, EN61000-3-2, EN61000-4-2,3,4,5,6,8,11.
