Din Rail Power Supply 24V DC
SKU: DR-4524
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

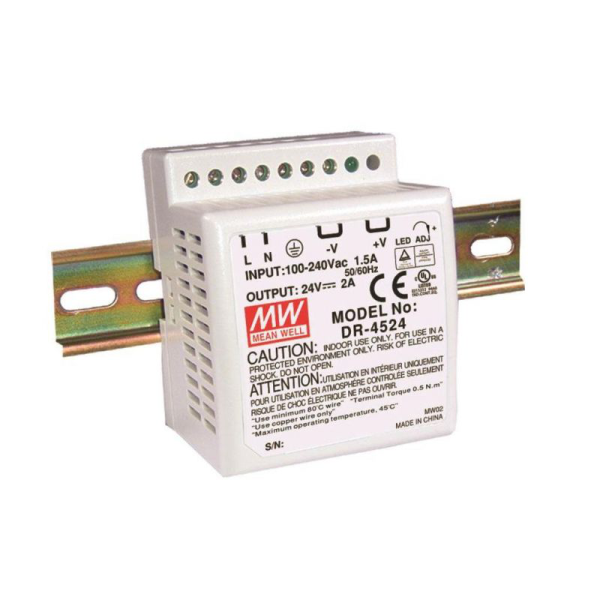

A dependable and effective DIN Rail Power Supply made for industrial use is the Mean Well DR-4524.
It uses a maximum power of 48W and a maximum current of 2A to produce a steady 24V DC output.
This power supply is perfect for a variety of automation and control systems because of its strong performance, small size, and simplicity of installation.
Specifications:
Input Voltage: 85-264 VAC, 120-370 VDC.
Output Voltage: 24V DC.
Output Current: 2A.
Output Power: 48W.
Efficiency: 80%.
Dimensions: 93mm (L) x 78mm (W) x 67mm (H).
Operating Temperature: -10°C to +50°C.
Protection: Overload, Over Voltage, Over Temperature.
Compliance: UL508, EAC TP TC 004, EN55032, EN61000-3-2, -3, EN61000-4-2, -3, -4, -5, -6, -8, -11.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Voltage: 85-264 VAC, 120-370 VDC.
Output Voltage: 24V DC.
Output Current: 2A.
Output Power: 48W.
Efficiency: 80%.
Dimensions: 93mm (L) x 78mm (W) x 67mm (H).
Operating Temperature: -10°C to +50°C.
Protection: Overload, Over Voltage, Over Temperature.
Compliance: UL508, EAC TP TC 004, EN55032, EN61000-3-2, -3, EN61000-4-2, -3, -4, -5, -6, -8, -11.
