Din Rail Power Supply 24V DC 240W

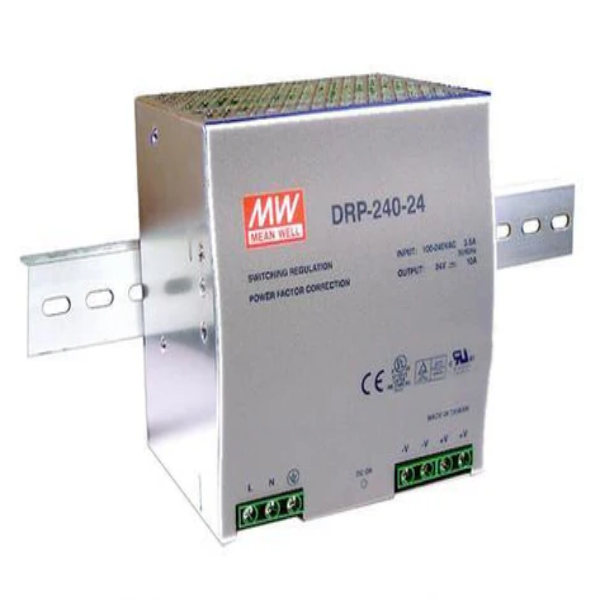

Pricing available on request Description: A powerful 240W industrial DIN rail power supply with a single output is the Mean Well DRP-240-24. It is intended to supply dependable and effective power for a variety of industrial uses. This power supply ensures optimal performance and energy economy with its built-in active PFC (Power Factor Correction) function and global AC input range. The DRP-240-24 is a strong and long-lasting option for challenging situations since it has several protective systems, such as overload, overvoltage, short circuit, and overtemperature precautions. Its small size makes it simple to mount on DIN rail TS-35/7.5 or 15, and its free air convection cooling system guarantees steady operation. Specifications: Output Voltage: 24V DC. Output Current: 10A. Rated Power: 240W. Input Voltage Range: 85 ~ 264VAC / 120 ~ 370VDC. Frequency Range: 47 ~ 63Hz. Efficiency: 84%. Power Factor: 0.96/230VAC, 0.99/115VAC at full load. Dimensions: 125.5mm (W) x 125.2mm (H) x 100mm (D). Weight: 1.2Kg. Protections: Short circuit, overload, over voltage, over temperature. Operating Temperature: -10°C to +70°C (Refer to “Derating Curve”). Humidity: 20 ~ 90% RH non-condensing. Compliance: UL508, UL60950-1, EAC TP TC 004, EN55032 Class B, EN61000-3-2, -3, EN61000-4-2,3,4,5,6,8,11. Cooling: Free air convection. Mounting Style: DIN rail TS-35/7.5 or 15.
