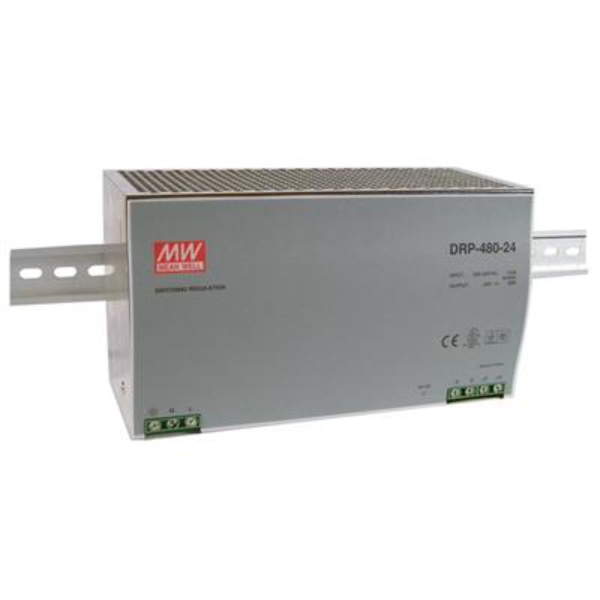

Din Rail Power Supply 24V DC 480W
SKU: DRP-480-24
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-performance DIN rail power supply made for industrial use is the Mean Well DRP-480-24.
It is appropriate for a variety of challenging situations because to its sturdy design, broad input voltage range, and excellent efficiency.
With several protective features to guard against overload, overvoltage, and overtemperature situations, this power supply guarantees dependable and steady power delivery.
Specifications:
Output Power: 480W.
Output Voltage: 24V DC.
Output Current: 20A.
Input Voltage Range: 180-264V AC / 250-370V DC.
Efficiency: 89%.
Power Factor: ≥0.7.
Dimensions: 227mm (L) x 125.2mm (W) x 100mm (H).
Operating Temperature: -20°C to +70°C.
Protection: Overload, Overvoltage, Overtemperature.
Compliance: UL508, UL60950-1, EAC TP TC 004.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 480W.
Output Voltage: 24V DC.
Output Current: 20A.
Input Voltage Range: 180-264V AC / 250-370V DC.
Efficiency: 89%.
Power Factor: ≥0.7.
Dimensions: 227mm (L) x 125.2mm (W) x 100mm (H).
Operating Temperature: -20°C to +70°C.
Protection: Overload, Overvoltage, Overtemperature.
Compliance: UL508, UL60950-1, EAC TP TC 004.
