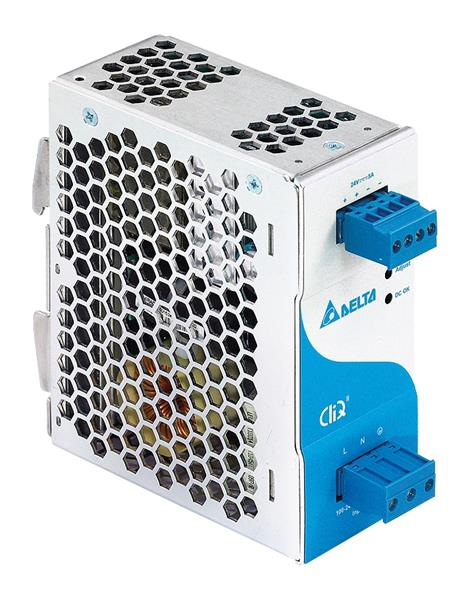

CLiQ II POWER SUPPLY 24VDC 120W 1PH
SKU: DRP024V120W1BN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Power Supplies:
Modern designs from Delta, the top power supply manufacturer in the world, are compliant with ATEX regulations and can resist tough industrial settings.
Its sturdy, incredibly small case can withstand shocks and vibrations, as per IEC 60068-2.
General Features:
Features of the product: RoHS-compliant.
Complete aluminium chassis that resists corrosion.
Offers protection against overload, overvoltage, and heat.
PCBAs with a conformal coating to guard against dust and chemical contaminants.
Certification: GS, CCS Aus; UL508, EN 60950, cULus 60950; EN 50178; EN 60204.
320 to 600 VAC (3 phase) and a wide input voltage range of 85 to 264 VAC (1 phase).
Power boost (makes reserve power available for dependable high inrush current load starting).
Buy currently uses Select Automation shop pricing and checkout.
CliQ II series DIN rail mounting:
With IP20 pluggable terminals and high efficiency and specification, CliQ II DIN rail power supplies have overload, overvoltage, and overtemperature protection on the output.
Other Features:
Superior performance > 92.0% at 230 VAC.
Input voltage for AC without power de-rating that is universal.
Meets IEC/EN 61000-3-2, Class A harmonic current requirements.
A five-second power boost lasting fifteen0% (or two seconds for 480W).
CLiQ II Series:
Description: Power supply
Input Voltage: 85 - 264 VAC
Output Voltage: 24 VDC (adjustable)
Rated Load (W): 120
Rated Load (A): 5
Housing: Aluminium
Mounting: DIN rail
Operating Temperature: -25 to + 80 °C
Dimensions (MM): (H) 121 x (W) 50 x (D) 125
